Chapter 6: Decision Trees

Question 1

Decision Trees

Answer 1

• An internal node is a test on an attribute.
• A branch represents an outcome of the test, e.g., Color=red.
• A leaf node represents a class label or class label distribution.
• At each node, one attribute is chosen to split training examples into distinct classes as much as possible.
• A new case is classified by following a matching path to a leaf node

Question 2

Building Decision Tree

Answer 2

• Top-down tree construction (Recursive Algo ⇒ End up with huge tree. If model is over fitted means it does not generalize well )

  • At start, all training examples are at the root.
  • Partition the examples recursively by choosing one attribute each time.
• Bottom-up tree pruning

  • Remove subtrees or branches, in a bottom-up manner, to improve the estimated accuracy on new cases

Question 3

Choosing the Splitting Attribute

Answer 3

• At each node, available attributes are evaluated on the basis of separating the classes of the training examples.
• A “goodness” function is used for this purpose. Typical goodness functions:

  • information gain (ID3/C4.5)
  • information gain ratio
  • gini index (CART)
• Pcrkct split criteria: Splits data in two sides - Yes and No. ⇒ clean subnodes

Question 4

A Criterion for Attribute Selection

Answer 4

• Which is the best attribute?

  • The one which will result in the smallest tree
  • Heuristic: choose the attribute that produces the “purest” nodes
• Popular impurity criterion: information gain

  • Information gain increases with the average purity of the subsets that an attribute produces
• Strategy: choose attribute that results in greatest information gain

Question 5

Computing Information

Answer 5

• Information is measured in bits

  • Given a probability distribution, the info required to predict an event, i.e. if play is yes or no, is the distribution’s entropy
  • Entropy gives the information required in bits (this can involve fractions of bits!)

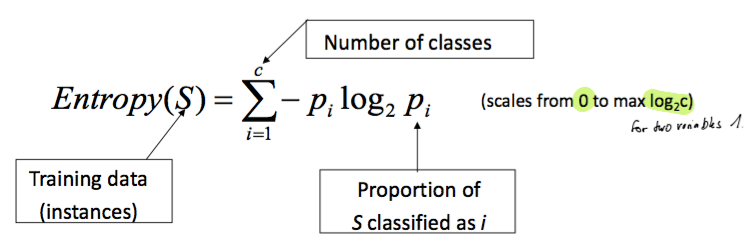

• Formula for computing the information entropy:

  • Defines how ordered a system is

Question 6

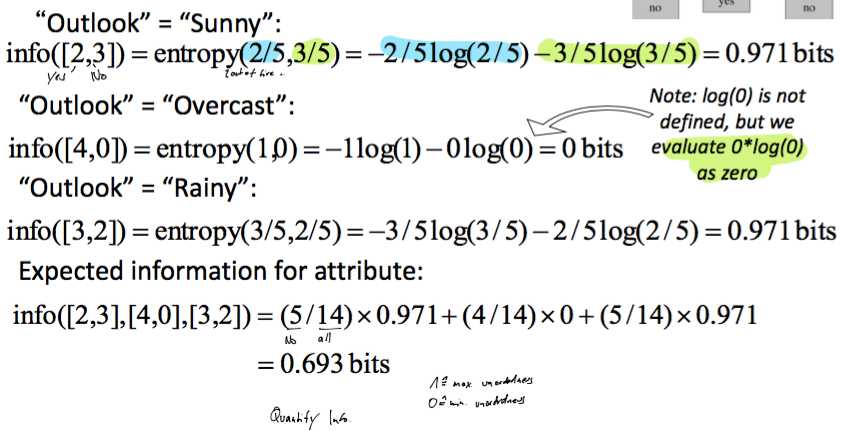

Example: attribute “Outlook”

Answer 6

Question 7

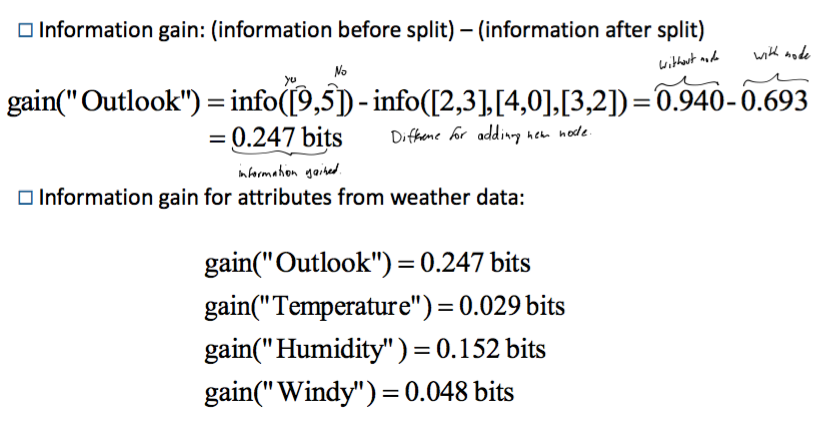

Computing the Information Gain

Answer 7

Question 8

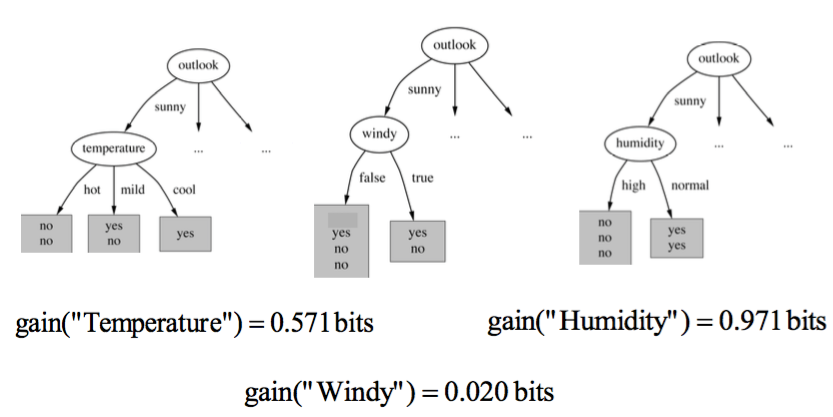

Continuing to Split

Answer 8

Question 9

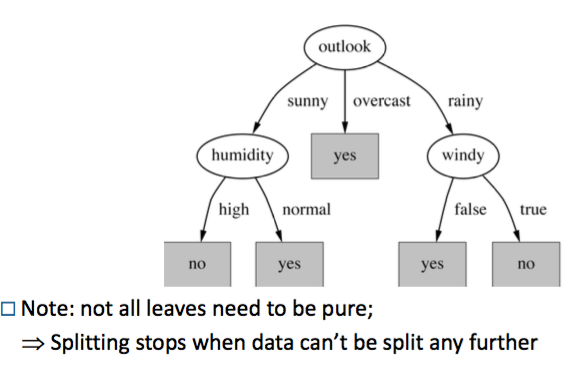

The Final Decision Tree

Answer 9

Question 10

Wish List for a Purity Measure

Answer 10

• Properties we require from a purity measure:

  • When node is pure, measure should be zero (=0)
  • When impurity is maximal (i.e. all classes equally likely), measure should be maximal (e.g., 1 for boolean values)
  • Multistage property: Info[2,3,4]=Info[2,7]+7/9 Info[3,4]
• Entropy is a function that satisfies these properties

Question 11

Entropy

Answer 11

• Entropy in general, describes the randomness of a system

  • Entropy = 0 describes a perfectly ordered system
• The term was used in thermodynamics and and statistical mechanics „ A Mathematical Theory of Communication“ by Claude Shannon 1948 defines entropy and information theory

  • „uncertainty about the contents of a message“

Question 12

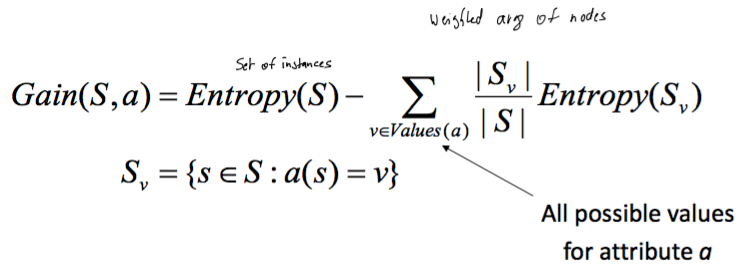

Expected Information Gain

Answer 12

Gain(S,a) is the information gained adding a sub-tree (Reduction in number of bits needed to classify an instance)

Problems?

Question 13

Highly-Branching Attributes

Answer 13

• Problematic: attributes with a large number of values (extreme case: ID code) Subsets are more likely to be pure if there is a large number of values

  • Information gain is biased towards choosing attributes with a large number of values
  • This may result in overfitting (selection of an attribute that is non-optimal for prediction)

Question 14

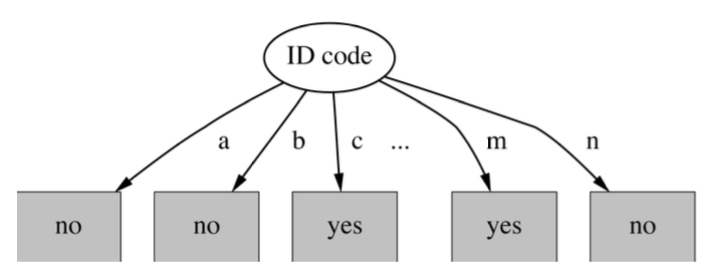

Split for ID Code Attribute

Answer 14

Entropy of split = 0 (since each leaf node is “pure”), having only one case. Information gain is maximal for ID code

Question 15

Gain Ratio

Answer 15

• Gain ratio: a modification of the information gain that reduces its bias on high-branch attributes 4 ->Corrects ID problem
• Gain ratio takes number and size of branches into account when choosing an attribute
• It corrects the information gain by taking the intrinsic information of a split into account (i.e. how much info do we need to tell which branch an instance belongs to)

Question 16

Computing the Gain Ratio

Answer 16

Example: intrinsic information for ID code

intrinsic_info(1,1, ,1) = 14 x( - 1/14 x log1/14)= 3.807 bits Importance of attribute decreases as intrinsic information grows.

Question 17

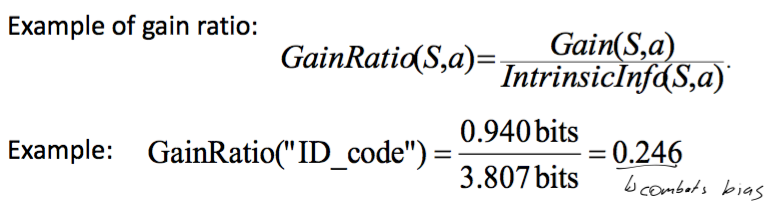

More on the Gain Ratio

Answer 17

• „Outlook” still comes out top
• However:

  • “ID code” has still greater gain ratio (0.246)
  • Standard fix: ad hoc test to prevent splitting on that type of attribute
• Problem with gain ratio: it may overcompensate

  • May choose an attribute just because its intrinsic information is very low
  • Standard fix:

    • First, only consider attributes with greater than average information gain
    • Then, compare them on gain ratio

Question 18

The Splitting Criterion in CART

Answer 18

• Classification and Regression Tree (CART)
• Developed 1974-1984 by 4 statistics professors

  • Leo Breiman (Berkeley), Jerry Friedman (Stanford), Charles Stone (Berkeley), Richard Olshen (Stanford)
• Gini Index is used as a splitting criterion
• Both C4.5 and CART are robust tools
• No method is always superior – experiment!

Question 19

Gini Index for 2 Attribute Values

Answer 19

• For example, two classes, Pos(itive) and Neg(ative), and dataset S with p Pos-elements and n Neg-elements.

  • fp = p / (p+n)
  • fn = n / (p+n)
  • Gini(S) = 1 – fp² - fn²
• If dataset S is split into S1, S2 then Gini_split(S₁, S₂) = (p₁+n₁)/(p+n) ·Gini(S₁) + (p₂+n₂)/(p+n) · Gini(S₂)

Question 20

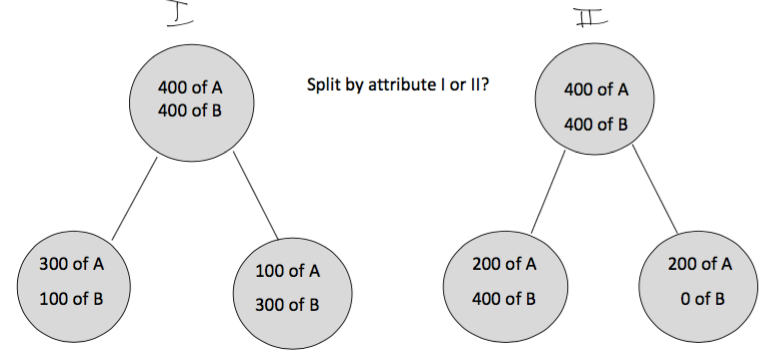

Gini Index for 2 Attribute Values Example

Answer 20

Question 21

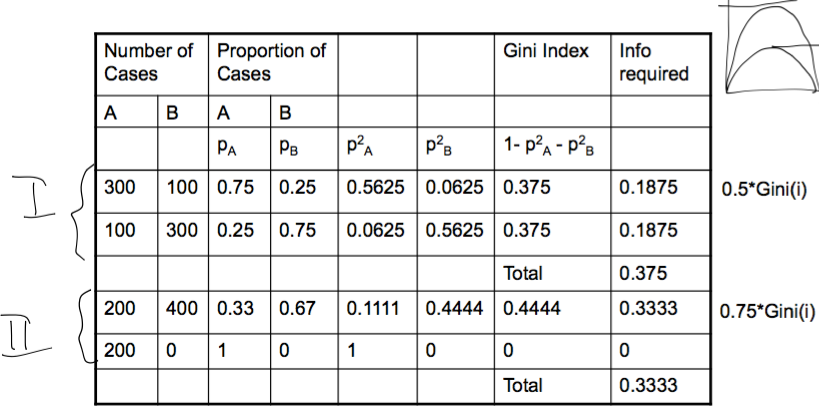

Gini Index 2 Attributes Example 2

Answer 21

Select the split that decreases the Gini Index most. This is done over all possible places for a split and all possible variables to split.

Question 22

Generate_DT(samples, attribute_list)

Answer 22

• Create a new node N;
• If samples are all of class C then label N with C and exit;
• If attribute_list is empty then label N with majority_class(samples) and exit;
• Select best_split from attribute_list;
• For each value v of attribute best_split:

  • Let S_v = set of samples with best_split=v ;
  • Let N_v = Generate_DT(S_v, attribute_list \ best_split) ;
  • Create a branch from N to N_v labeled with the test best_split=v;

Question 23

Time Complexity of Basic Algorithm

Answer 23

• Let m be the number of attributes
• Let n be the number of instances
• Assumption: Depth of tree is O(log n)

  • Usual assumption if the tree is not degenerate
• For each level of the tree all n instances are considered (best = vi)

  • O(n log n) work for a single attribute over the entire tree
• Total cost is O(mn log n) since all attributes are eventually considered.

  • Without pruning (see next class)

Question 24

Scalability of DT Algorithms

Answer 24

• Need to design for large amounts of data Two things to worry about
• Large number of attributes

  • Leads to a large tree
  • Takes a long time
• Large amounts of data

  • Can the data be kept in memory?
  • Some new algorithms do not require all the data to be memory resident

Question 25

Relational Rules (Shapes Problem)

Answer 25

If width \> height then lying If height \> width then standing * Rules comparing attributes to constants are called propositional rules (propositional data mining) * Relational rules are more expressive in some cases (new column: height / width) * define relations between attributes (relational data mining) * most DM techniques do not consider relational rules * As a workaround for some cases, one can introduce additional attributes, describing if width \> height * allows using conventional “propositional” learners

Question 26

Propositional Logic

Answer 26

* Essentially, decision trees can represent any function in propositional logic * A, B, C: propositional variables * and, or, not, =\> (implies), \<=\> (equivalent): connectives * A proposition is a statement that is either true or false The sky is blue. color of sky = blue * Decision trees are an example of a propositional learner.

Question 27

C4.5 – An Industrial-Strength Algorithm

Answer 27

* For an algorithm to be useful in a wide range of real- world applications it must: * Permit numeric attributes * Allow missing values * Be robust in the presence of noise * Basic algorithm needs to be extended to fulfill these requirements

Question 28

Numeric Attributes

Answer 28

* Unlike nominal attributes, every attribute has many possible split points * E.g. temp \< 45 * Standard method: binary splits * Solution is straightforward extension: * Evaluate info gain (or other measure) for every possible split point of attribute * Choose “best” split point * Info gain for best split point is highest info gain for attribute * Numerical attributes can be used several times in a decision tree, nominal attributes only once

Question 29

Binary Splits on Numeric Attributes

Answer 29

* Splitting (multi-way) on a nominal attribute exhausts all information in that attribute * Nominal attribute is tested (at most) once on any path in the tree * Not so for binary splits on numeric attributes! * Numeric attributes may be tested several times along a path in the tree * Disadvantage: tree is hard to read * Remedy: * pre-discretize numeric attributes, or } separate class * allow for multi-way splits instead of binary ones using the Information Gain criterion

Question 30

Handling Missing Values / Training

Answer 30

* Ignore instances with missing values * Pretty harsh, and missing value might not be important * Ignore attributes with missing values * Again, may not be feasible * Treat missing value as another nominal value * Fine if missing a value has a significant meaning * Estimate missing values * Data imputation: regression, nearest neighbor, mean, mode, etc.

Question 31

Overfitting

Answer 31

* Two sources of abnormalities * Noise (randomness) * Outliers (measurement errors) * Chasing every abnormality causes overfitting * Decision tree gets too large and complex * Good accuracy on training set, poor accuracy on test set * Does not generalize to new data any more * Solution: prune the tree

Question 32

Decision Trees - Summary

Answer 32

* Decision trees are a classification technique * The output of decision trees can be used for descriptive as well as predictive purposes * They can represent any function representable with propositional logic * Heuristics such as information gain are used to select relevant attributes * Pruning is used to avoid over fitting
