Fourier Transform

Question 1

What is the main purpose of the exponential Fourier series?

Answer 1

To express a periodic time-domain function as a sum of sinusoids or complex exponentials

This allows for analysis in the frequency domain.

Question 2

What are Fourier series coefficients used for?

Answer 2

To represent a periodic function in terms of its sinusoidal components

Coefficients include both amplitude and phase information.

Question 3

What does LTI stand for?

Answer 3

Linear Time-Invariant

LTI systems have properties that are crucial for signal processing.

Question 4

What is the relationship between input signals and LTI systems?

Answer 4

An arbitrary input can be represented as a sum of sinusoids, allowing the output to be easily determined using linearity.

Question 5

Fill in the blank: The fundamental angular frequency is given by _______.

Answer 5

𝜔₀ = 2𝜋/𝑇₀

Question 6

What is the formula for determining the compact Fourier coefficients from a periodic function?

Answer 6

cₙ = 1/T₀ ∫₀^T₀ x(t) e^{-j n 𝜔₀ t} dt

Question 7

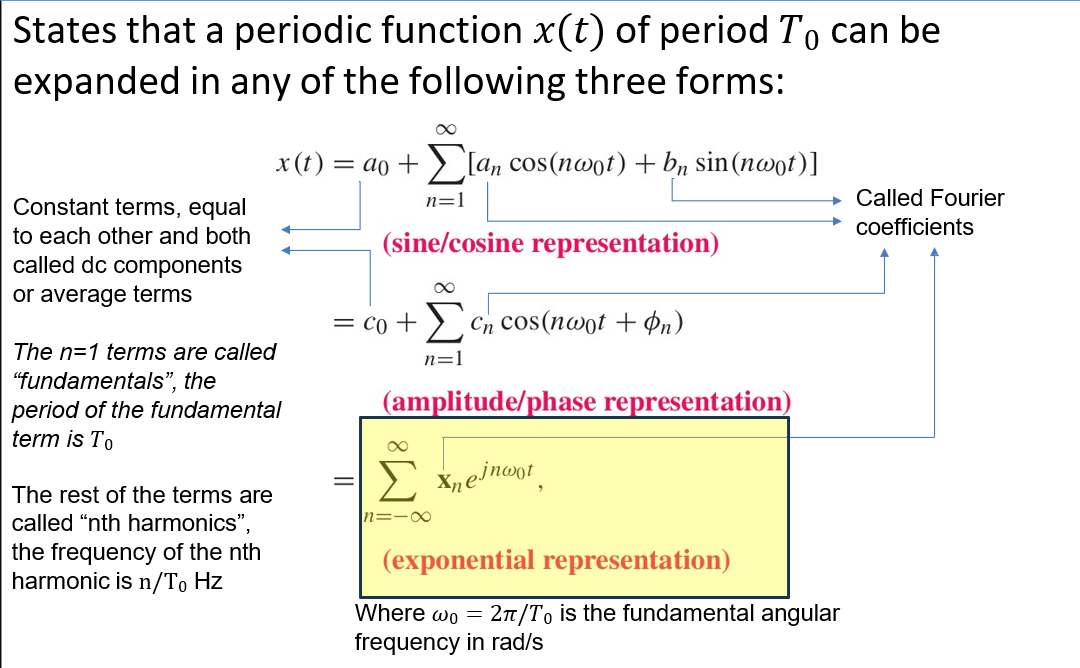

What does the Fourier theorem state about periodic functions?

Answer 7

A periodic function can be expanded in terms of fundamentals and nth harmonics, with coefficients representing the function’s frequency content.

Question 8

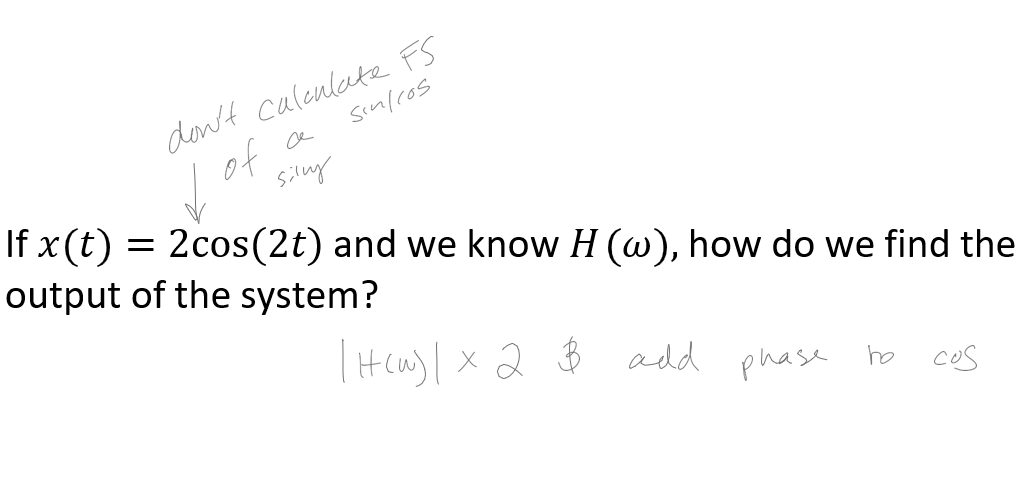

How do you evaluate the system’s frequency response for a given input?

Answer 8

By calculating H(n𝜔₀) for each harmonic and multiplying it with the corresponding Fourier series coefficient.

Question 9

What is meant by the term ‘dc component’ in Fourier analysis?

Answer 9

Constant terms that represent the average value of the periodic function.

Question 10

True or False: The Fourier series can only represent even functions.

Answer 10

False

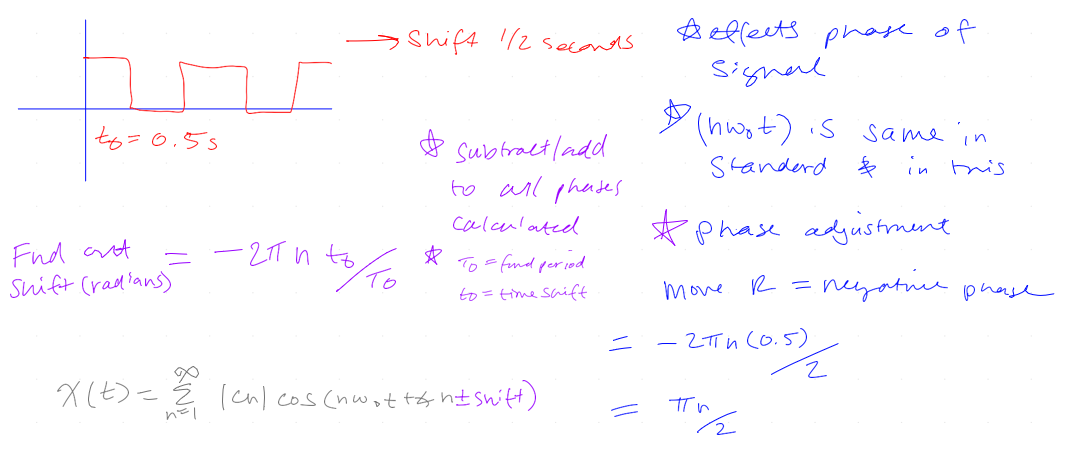

When calculating FS x-axis (DC Offset) may be shifted to fit precalculat

Fourier series can represent both even and odd functions.

Question 11

What is the significance of the phase information in Fourier coefficients?

Answer 11

It helps in reconstructing the time-domain signal from its frequency components.

Question 12

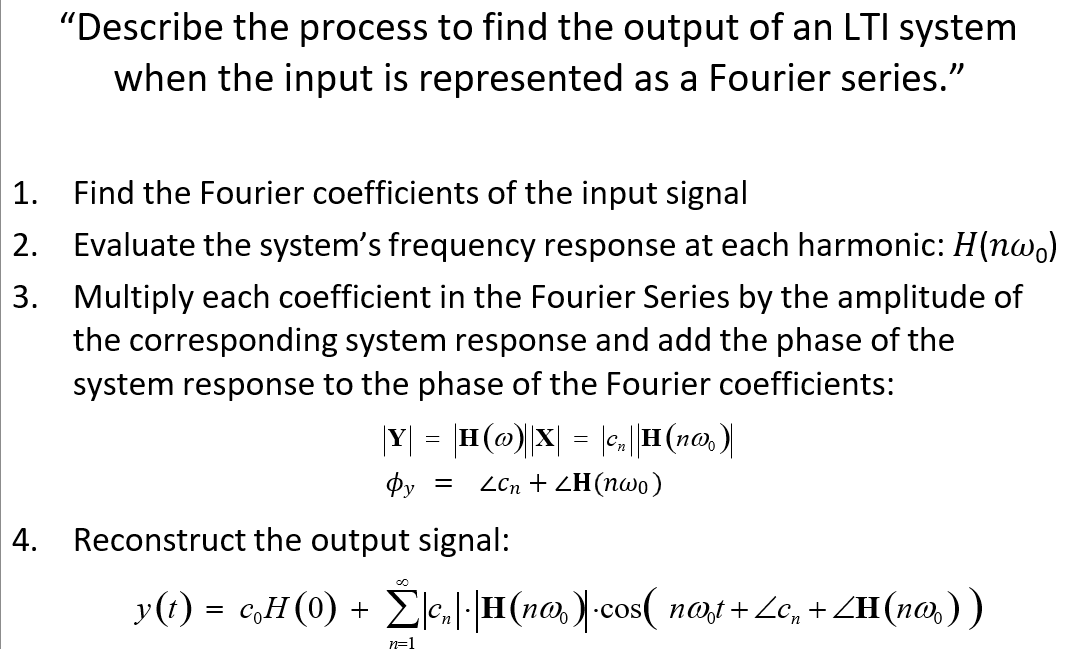

What is the output signal of an LTI system given an input represented as a Fourier series?

Answer 12

y(t) = c₀H(0) + Σ(cₙ * H(n𝜔₀) * cos(n𝜔₀t + ∠cₙ + ∠H(n𝜔₀)))

This formula combines the input coefficients with the system’s response.

Question 13

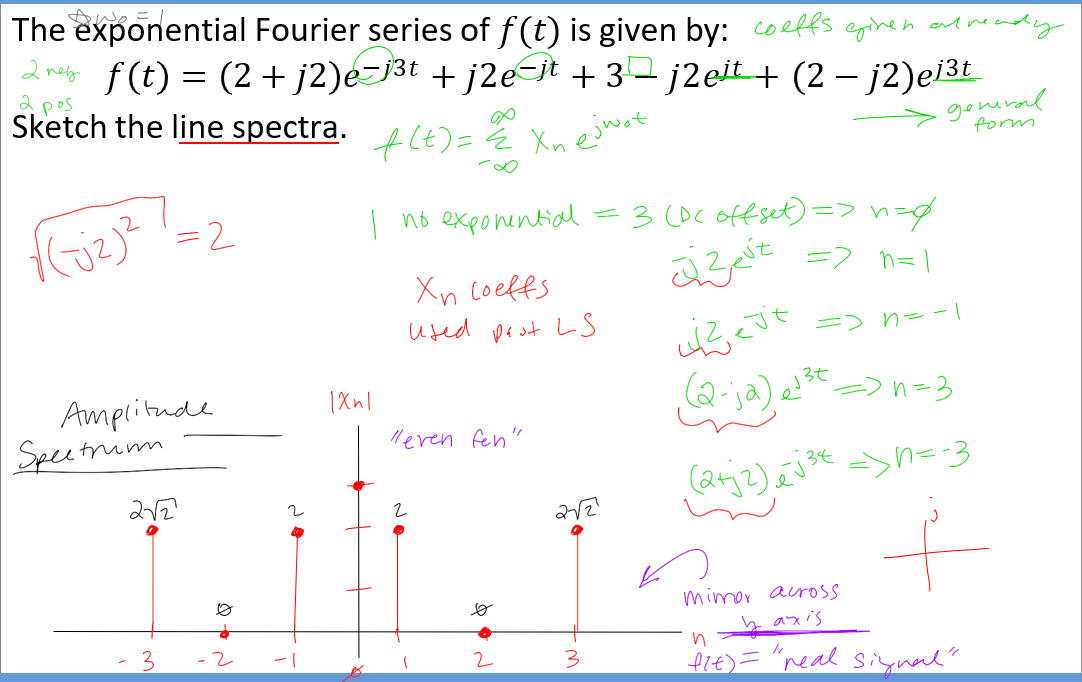

What is the amplitude spectrum in the context of Fourier series?

Answer 13

A plot of the magnitudes of the Fourier coefficients over frequency.

Question 14

What is the first step in finding the output of an LTI system when the input is a Fourier series?

Answer 14

Find the Fourier coefficients of the input signal.

Question 15

What does the notation 𝜙ₙ represent in Fourier series?

Answer 15

The phase of the nth Fourier coefficient.

Question 16

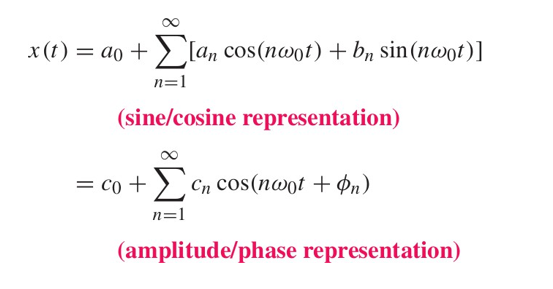

What is the compact Fourier series coefficient for a given function x(t)?

Answer 16

cₙ = √(a² + b²)

Where a and b are the Fourier coefficients related to cosine and sine components.

Question 17

What is the formula for the nth harmonic frequency?

Answer 17

n/T₀ Hz

Question 18

Fill in the blank: The Fourier transform can be used to write the Fourier transform of a given _______.

Answer 18

aperiodic time-domain function

Question 19

In the context of Fourier series, what does the term ‘harmonics’ refer to?

Answer 19

Sinusoidal components at integer multiples of the fundamental frequency.

Question 20

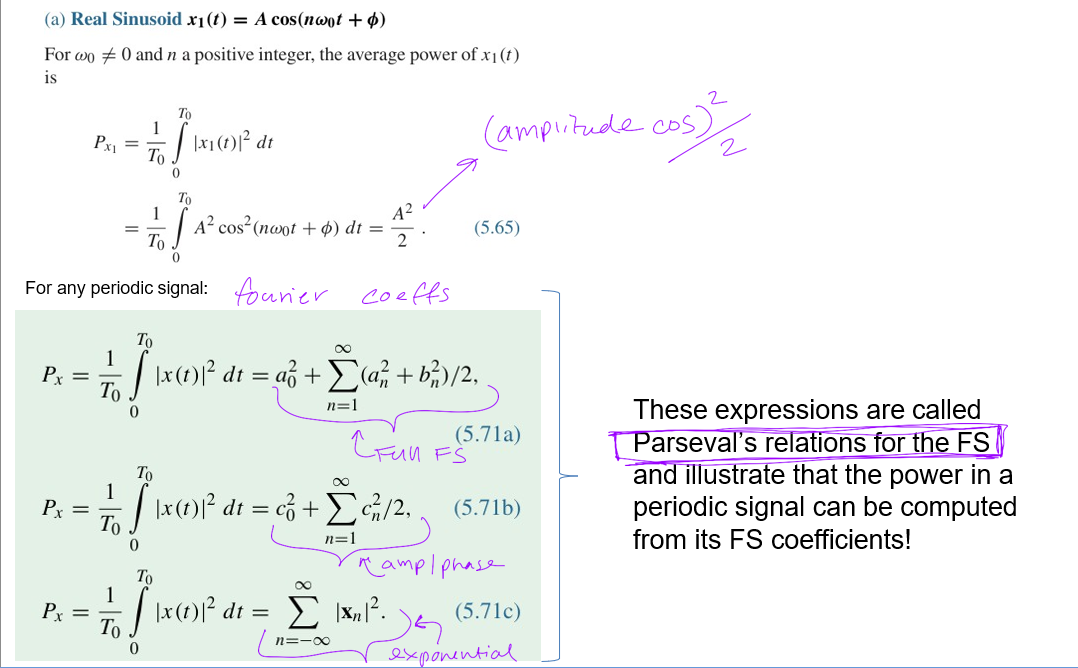

What are Parseval’s relations for the Fourier Series?

Answer 20

Expressions that illustrate that the power in a periodic signal can be computed from its Fourier Series coefficients.

Used to relate time and frequency domain representations.

Question 21

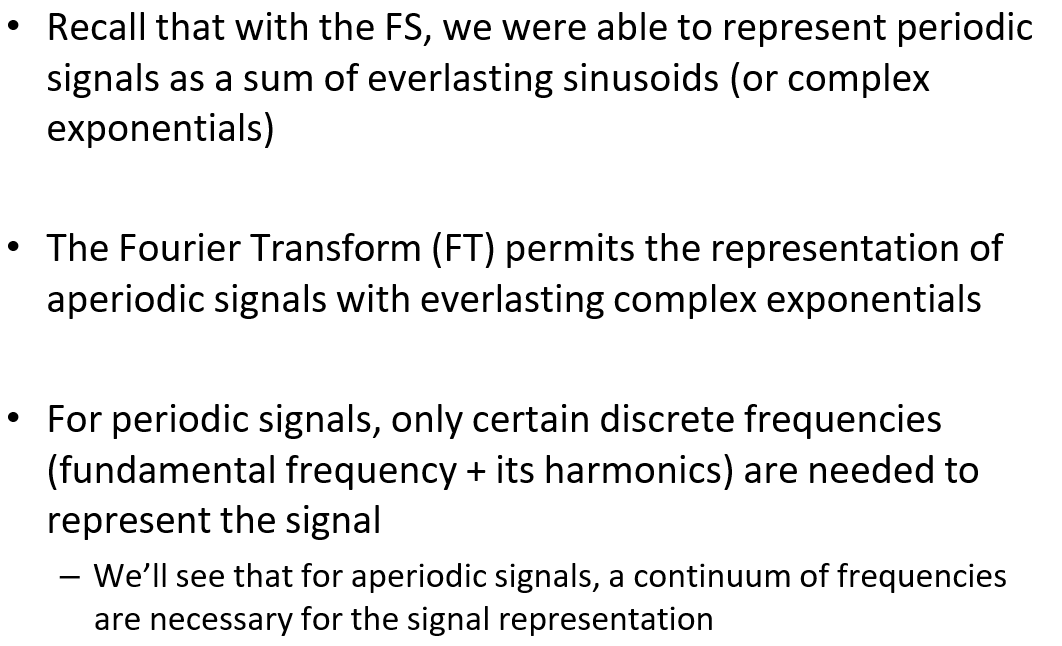

What does the Fourier Transform (FT) permit?

Answer 21

The representation of aperiodic signals with everlasting complex exponentials.

Unlike Fourier Series, FT is applicable for non-repeating signals.

Question 22

What is needed to represent periodic signals in Fourier analysis?

Answer 22

Only certain discrete frequencies (fundamental frequency + its harmonics).

Each harmonic corresponds to an integer multiple of the fundamental frequency.

Question 23

What is the integral of the periodic function over one period equal to?

Answer 23

The integral of the aperiodic function over the same interval.

Shows the relationship between periodic and aperiodic representations.

Question 24

Define the Fourier Transform.

Answer 24

Given by ( X(omega) = int x(t) e^{-j omega t} dt ).

Transforms a time-domain signal into its frequency-domain representation.

Question 25

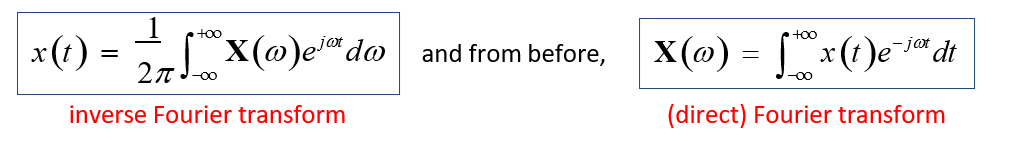

What is the inverse Fourier transform?

Answer 25

Given by ( x(t) = rac{1}{2pi} int X(omega) e^{j omega t} domega ). ## Footnote Allows reconstruction of the time-domain signal from its frequency-domain representation.

Question 26

What happens as ( T_0 ) becomes very large in Fourier Transform?

Answer 26

The summation becomes an integral. ## Footnote Indicates the transition from discrete to continuous frequency representation.

Question 27

What is the general form of the Fourier Transform for a function?

Answer 27

Given by ( X(omega) = int x(t) e^{-j omega t} dt ). ## Footnote Represents the relationship between the time-domain and frequency-domain functions.

Question 28

True or False: The Fourier Transform can only be used for periodic signals.

Answer 28

False. ## Footnote The Fourier Transform is applicable to both periodic and aperiodic signals.

Question 29

What is the form of the Fourier series coefficients for a periodic signal?

Answer 29

Given by ( x_n = rac{1}{T_0} int_{0}^{T_0} x(t) e^{-j n omega_0 t} dt ). ## Footnote This formula calculates the coefficients for reconstructing the signal in the frequency domain.

Question 30

What does the notation ( delta(omega) ) represent in the context of Fourier Transform?

Answer 30

It represents the Dirac delta function, which is used in sampling/sifting properties. ## Footnote Essential for understanding the effects of sampling in signal processing.

Question 31

Fill in the blank: The representation of aperiodic signals requires a _______ of frequencies.

Answer 31

continuum. ## Footnote Aperiodic signals need an infinite number of frequencies for accurate representation.

Question 32

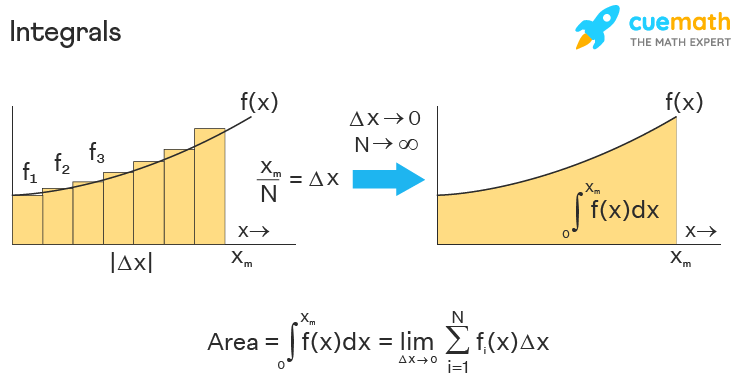

What is the significance of the limit as ( Delta omega ) becomes very small?

Answer 32

It indicates that the summation in Fourier Transform approaches an integral. ## Footnote This is crucial for understanding the transition from discrete to continuous frequency analysis.
