Intro to neuroimaging

Question 1

What modalities are used in neuroimaging?

What are their benefits/ uses/ disadvantages?

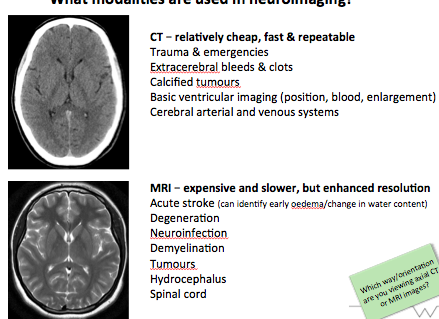

Answer 1

• CT scan:

  • Cheap, quick and repeatable
  • Emergency and trauma
  • extracerebral bleeds and clots (extracerebral meaning any bleed outside cerebrum –> subarachnoid/ subdural/ extradural)
  • Calcified tumours
  • basic ventricular imaging –> size/ position/ blood
  • cerebral arterial and venous system
• MRI:

  • Slower, more expensive but high resolution imaging
  • Acute stroke –> oedema
  • Degeneration and demyelination
  • Tumours
  • Neuroinfection
  • Hydrocephalus
  • Spinal cord

Question 2

What is an MRI?

What are the different strengths of MRI that can be used and what are their advantages/ disadvantages?

Answer 2

• During MRI a strong magnet us used to create radio waves that are directed towards the patient. Radio waves are used to send signals to the body and then receive them back, these returning signals are converted into an image by a computer attached to the MRI

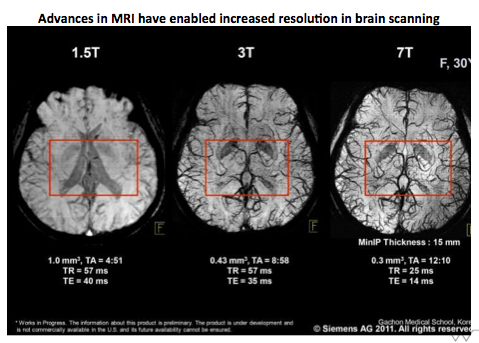

• MRI scanners can have different magnetic field strengths which is measured in Teslas “T”.
• The higher the teslas the higher the resolution image and more detail you will pick up, however there is also an increased chance of artifacts.
• 1.5 T useful for chest and abdominal scans
• 3 T is ideal for imaging small bones, breast MRI, musculoskeletal MRI, neurological and vascular tissues where minute detail is crucial to diagnosis. Most hospitals have 3T MRI.

Question 3

How might the dural layers be used as landmarks in neuroimaging?

What sinuses are located with the dural reflections?

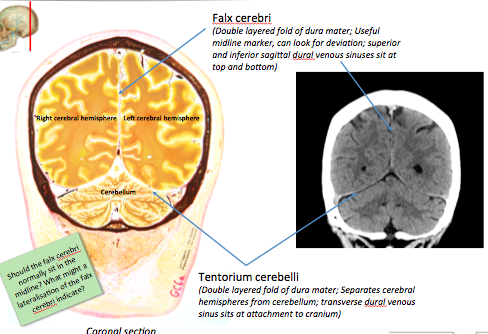

Answer 3

• Know at several points dural reflections occur, separating the different regions of the brain:

  • Falx cerebri between R and L hemispheres
  • Falx cerebelli between R and L cerebellar hemispheres
  • Tentorium cerebelli overlying the cerebellum and separating occipital lobe.
• This is a useful landmark as Falx cerebri should always be in the midline, if it is shifted this is indicative of a space occupying lesion
• Useful as if the tentorium cerebelli can be seen you know you are far back in the image.
• Sinuses –> falx cerebri associated with superior sagittal sinus and inferior sagittal sinus
• Sinuses –> transverse sinuses associated with tentorium cerebelli

Question 4

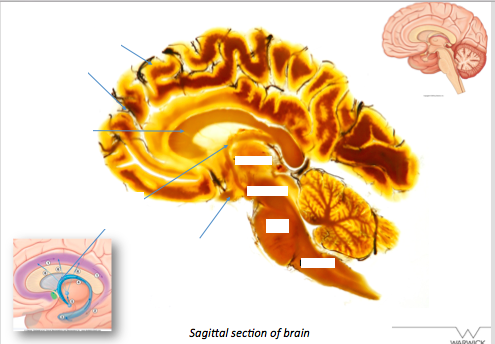

Label the ventricular system

Answer 4

Lateral ventricles split into an anterior horn, body, atrium, occipital horn and temporal horn.

Lateral ventricles drain into the 3rd ventricle via the interventricular foramen

CSF flows from the 3rd ventricle into the 4th ventricle via the cerebral aqueduct.

Question 5

How can the ventricular system be used to landmark in neuroimaging?

How do they appear in an MRI?

Answer 5

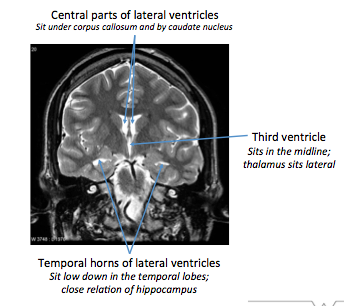

• Ventricles filled with CSF therefore appear white in MRI scan that is weighted T2 or above. Note that different magnet strengths will make images appear differently, therefore on a T1 fluid will not appear as bright.
• Useful landmarks as the central regions of the lateral ventricles are bounded by the caudate nucleus laterally and the corpus callosum superiorly.
• The lateral ventricles lead into the 3rd ventricle which is bound laterally by the two thalamic lobes.
• The inferior portions of the lateral ventricles (i.e the temporal horns) are useful landmarks for the hippocampus.

Question 6

What is a CT scan?

What modality does it use?

How do images appear?

Answer 6

CT = Computed tomography or CAT scan = Computed Axial Tomography –> same thing.

CT scans based on X-rays, takes sequential pictures of the body as it rotates around. Computed takes data from the single images and combines it with known angle and position to recreate 3D image of the body.

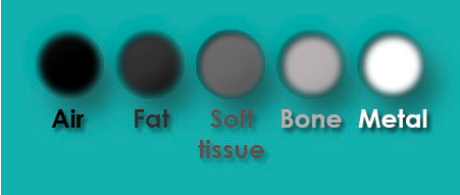

As CT based on XRAY therfore:

bones = white

air = black.

Question 7

Label the image

Answer 7

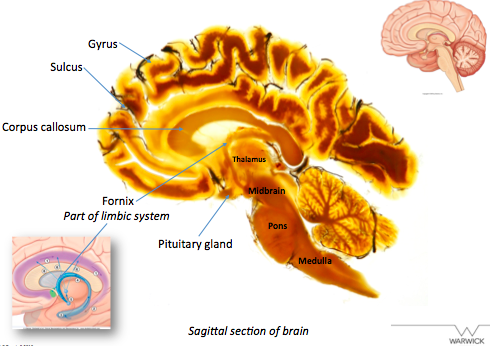

Question 8

What can help determine the level of a cross section in neuroimaging?

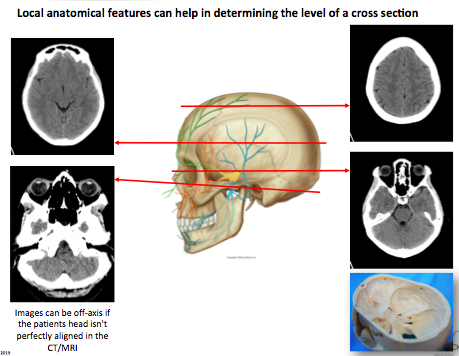

Answer 8

• You need to look for local anatomical features which will help orientate what level you are at:

  • Top L image –> frontal sinuses, therefore know you’re just above the eyebrows
  • Middle R image –> Passing through the orbits
  • Bottom L image–> External auditory meatus and cerebellum visible therefore know youre lower level.

Question 9

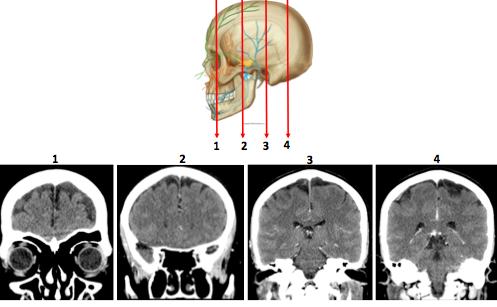

What key anatomical features help distinguish the plane of the section?

Answer 9

• Image 1: orbits, frontal sinus, ethmoid cells and maxillary sinus
• Image 2: nasal septum, nasal cavities, mandible
• Image 3: lateral ventricles, anterior horns and 3rd ventricle
• Image 4: lateral ventricles, brainstem dropping via foramen magnum

Question 10

label the image

What type of image is this?

Why is there asymmetry?

Answer 10

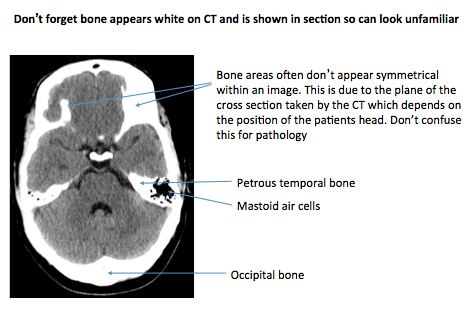

The image is a CT scan, top two arrows point towards bone as bone appears white in CT scans.

The asymmetry is due to the plane of the cross secton and isn’t actually pathology but the plane at which it was taken.

Next two arrows are pointing to the petrous portion of the temporal bone and the mastoid air cells.

Last arrow is poiting towards the occipital bone.

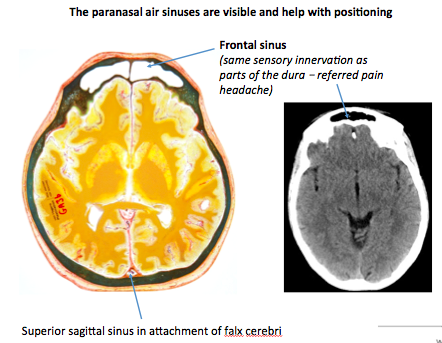

Question 11

What sinus is shown?

what is its sensory innervation and how is this clinically relevant?

How does this help us to know level of positioning?

What sinus is shown posteriorly?

Answer 11

Frontal sinus

Sensory Innervation of the frontal sinus is the same as parts of the dura. Dura is innervated by different divisions of trigeminal (v1/v2/v3), frontal sinus is innervated by V1, therefore inflammation of the meninges can refer to the frontal sinus causing headache.

Aids positioning of the scan as frontal sinuses are within the frontal bone superior to the eyebrow.

Superior sagittal sinus is shown posteriorly, in attachment with the falx cerebri.

Question 12

What lobes are shown?

What level is this scan at?

What fissure can be seen?

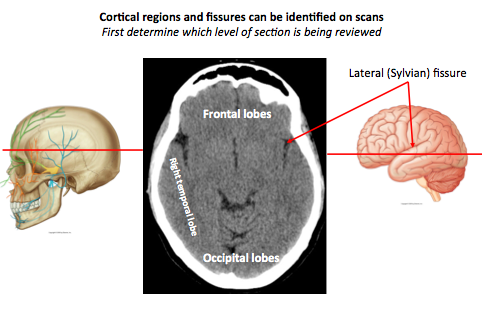

Answer 12

1) Frontal lobe
2) R temporal lobe
3) Occipital lobe

Fissure –> Sylvian or lateral fissure

Level of the scan must be at the level of the eyebrow region as the two frontal sinuses are shown.

Question 13

What should coronal and axial head images normally be?

Is this is not identified what pathology may be indicated?

What anatomical features can be used to indicate pathology in a head scan?

Answer 13

• Coronal and axial head scans should normally be symmetrical
• Midline shift indicates there is a space occupying lesions, or increased intracranial pressure
• Anatomical features that can be used are –> falx cerebri, position of the ventricles

Question 14

What pathologies are shown in the following images?

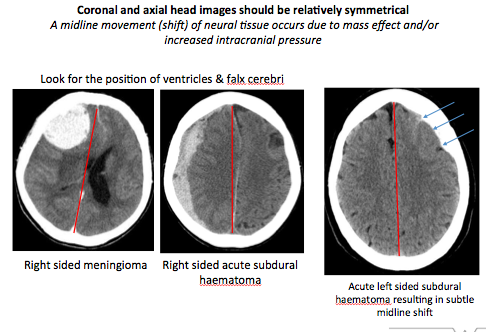

Answer 14

1. Right sided meningioma with large left midline shift
2. Right sided subdural haematoma with slight left midline shift
3. Left sided extradural haematoma with slight right midline shift

Question 15

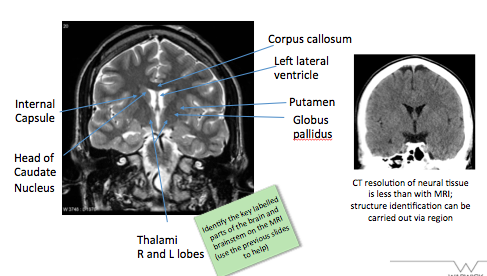

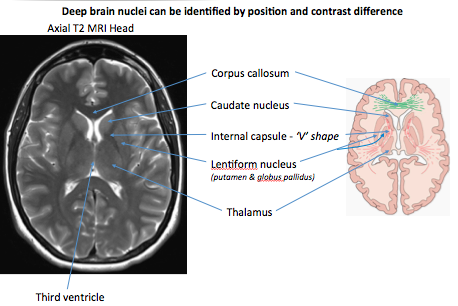

Label image shown

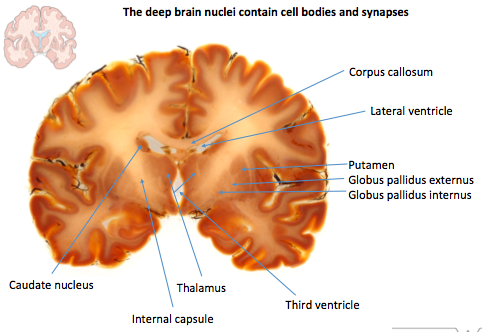

Answer 15

Top to bottom R to L:

1. Corpus callosum –> connecting R and L hemispheres
2. L lateral ventricle
3. Putamen
4. Globus pallidus externus and internus
5. 3rd ventricle
6. R and L thalamic lobes
7. Internal capsule
8. Head of the caudate nucleus

Question 16

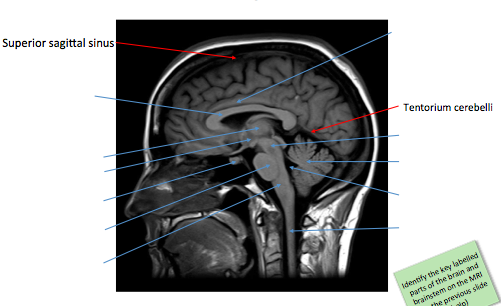

Label the image shown

Answer 16

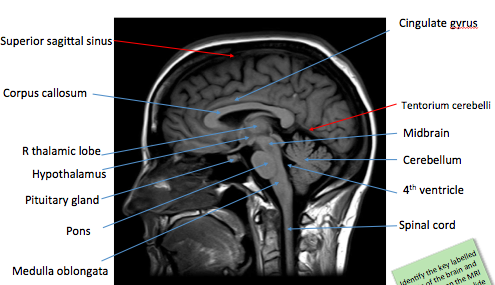

Question 17

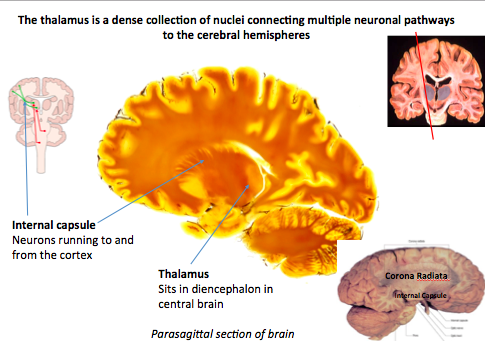

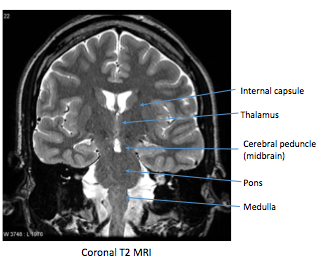

What is the thalamus composed of?

Label the image shown

Answer 17

• The thalamus is a dense collection of nuclei that connects multiple neuronal pathways to the cerebral hemispheres
• The first arrow is to the fibres of the internal capsule running between the cerebral cortex and other brain regions/ spinal cord.
• Second arrow to the thalamus which is part of the diencephalon.

Question 18

Label the image

Answer 18

Question 19

T2 weighted MRI:

What is the appearance of bone?

What is the appearance of CSF?

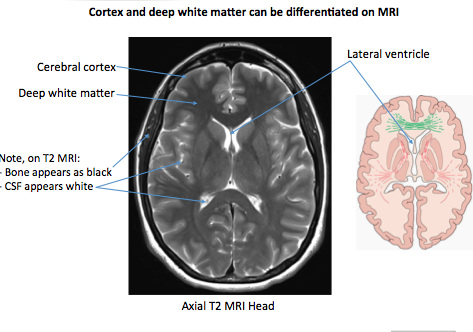

Answer 19

On a T2 weighted MRI bone will appear black and CSF will appear white.

Note also that cerebral grey matter can be distinguished from white matter tracts on a T2 weighted MRI.

Question 20

Label image

Answer 20

Question 21

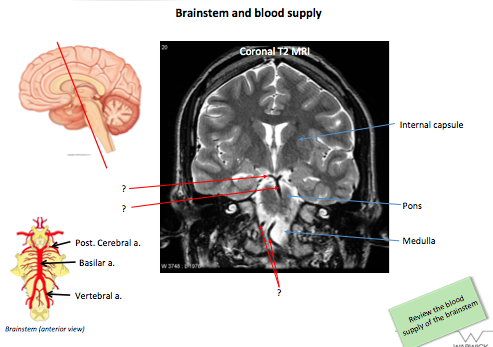

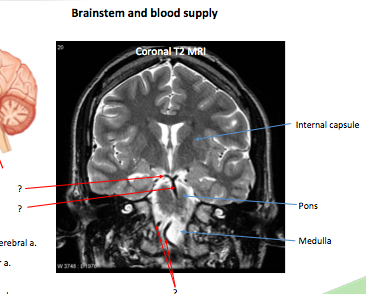

What are the arrows pointing to on the image?

Answer 21

• Arrows pointing the blood vessels supplying the brain
• Bottom two arrows pointing to the vertebral arteries
• Then basilar
• Then posterior cerebral arteries

Question 22

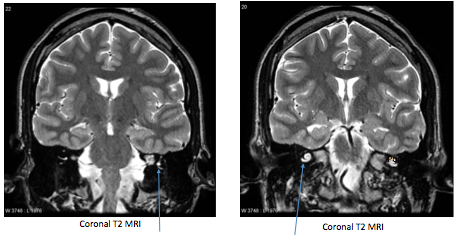

What two important structures are shown in the image?

Answer 22

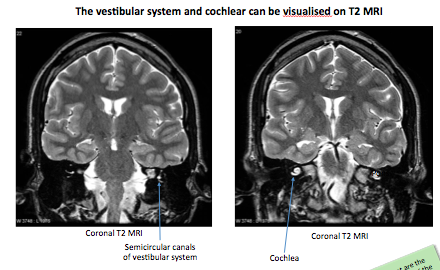

• Left hand image pointing to the vestibular system, the semicircular canals –> balance
• Right hand image is pointing to the cochlea –> contains inner hair cells that allow transduction of sound via auditory nerve to auditory cortex.

Question 23

Label the image

Answer 23

Question 24

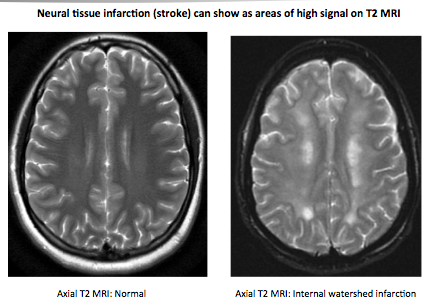

How does neural tissue appear on a T2 MRI after a stroke?

What is a watershed infarct?

Answer 24

• Damaged tissue from a stroke will show with a higher intensity signal (brighter).
• Watershed infarct also known as a border zone infarct and occurs at the border of vascular territories, where tissue is farthest from arterial supply and therefore most vulnerable to reduction in perfusion.

Question 25

What pathology is shown? On which side will the patient experience symptoms?

Answer 25

* Large infarct/ stroke affecting the left parietal lobe. Parietal lobe houses primary somatosensory cortex, therefore likely to experience sensory defecits on the right side.

Question 26

What pathology is shown? Which side will the patient show symptoms?

Answer 26

* Left pontine infarct --\> occlusion of left pontine arteries * Ipsilateral cranial nerve palsy * Contralateral hemiplegia/ hemiparesis and/ or hemisensory loss.

Question 27

Label the image

Answer 27

Note the question mark bottom right image --\> think sigmoid sinus

Question 28

Label image shown

Answer 28

Question 29

Label the image shown

Answer 29

Question 30

Label the image and define the type of bleed that would occur where, and what type of vessel is involved.

Answer 30

Question 31

What pathology is shown in the image? What are the distinguishing features of this kind of trauma?

Answer 31

* On the Left hand image CT shows fracture of the left petrous temporal bone * Right hand image shows a left extradural haematoma. It is causing local compression but no midline shift * mixed density of haematoma displays possibility of ongoing active bleeding and introduction of gas molecules from fracture. * Patient displayed bleeding out his left ear. * Distinguishing features of extradural haematoma's --\> often ellipitical biconvex in shape, cause mass effect with herniation, bleeding can be limited by suture joints. * In this example bleeding is limited by the llambdoid suture. * Bleeding often due to tear of middle meningeal artery.

Question 32

What pathology is shown? What are the characteristics of this type of trauma? What may this be confused for?

Answer 32

* Acute subdural haematoma overlying the frontal lobe - collectiong of blood in the potential space between the dura mater and arachnoid mater. They are normally closely adhered. * Subdural haematomas typically affect: elderly during falls, motor vehicle accidents * Could be confused for bone in a CT scan * Note there is a fuzzy border between the bone and the frontal lobe indicating this is a bleed. * Subdural bleeds have a fuzzy border as they sit directly over the brain tissue and can push into the sulci * Bleed is venous, from cerebral bridging veins * Appearance often crescent shaped, hyperdense region

Question 33

What pathology is shown?

Answer 33

* Left hand image --\> acute right subdural haematoma, between the dura and arachnoid mater, affecting the temporal/occipital lobes. * Note: crescent shape, fuzzy border, disappearance of sulci, however blood does not enter the sulci. * Right hand image --\> Blood overlying the tentorium cerebelli

Question 34

How does the density of a subdural bleed help diagnosis?

Answer 34

* The density of a subdural bleed determines how recent the bleed is. * Acute bleed: Hyperdense regions indicate a recent bleed, classic appearance is the crescent shaped homogenously hyperdense collection that spreads diffusely over affected hemisphere. * Subacute bleed: clot ages, protein degradation occurs, density starts to drop, becomes isodense to adjacent cortex making identification tricky without contrast. * Chronic: bleed 3 weeks old. * Subdural collection becomes hypodense, crescentic shape may change to biconvex. Rarely may calcify affearing white in CT.

Question 35

Where does a subarachnoid haemorrhage bleed into? How does it appear on imaging (CT vs MRI?) Where are subarachnoid haemorrhages commonly seen?

Answer 35

* Subarachnoid haemorrhages --\> in the subarachnoid space between the arachnoid mater and pia mater overlying the gyri and sulci. * Bleed follows the gyri and sulci and fissures. * MRI more sensitive but CT commonly performed due to wider availabilty. Can more easily detect the causative lesion * CT depends on amount of blood present and time since bleeding began. Diagnosis made when hyperattenating material is seen filling subarachnoid space. (Brighter region off white/ grey). * MRI shows as hyperintense region in subarachnoid space * Commonly seen around: * Circle of willis * lateral fissure * interpeduncular fossa * lateral ventricle * due to berry aneurysms at junction of ICA and ACA/ MCA
