3_Pub/Sub

Question 1

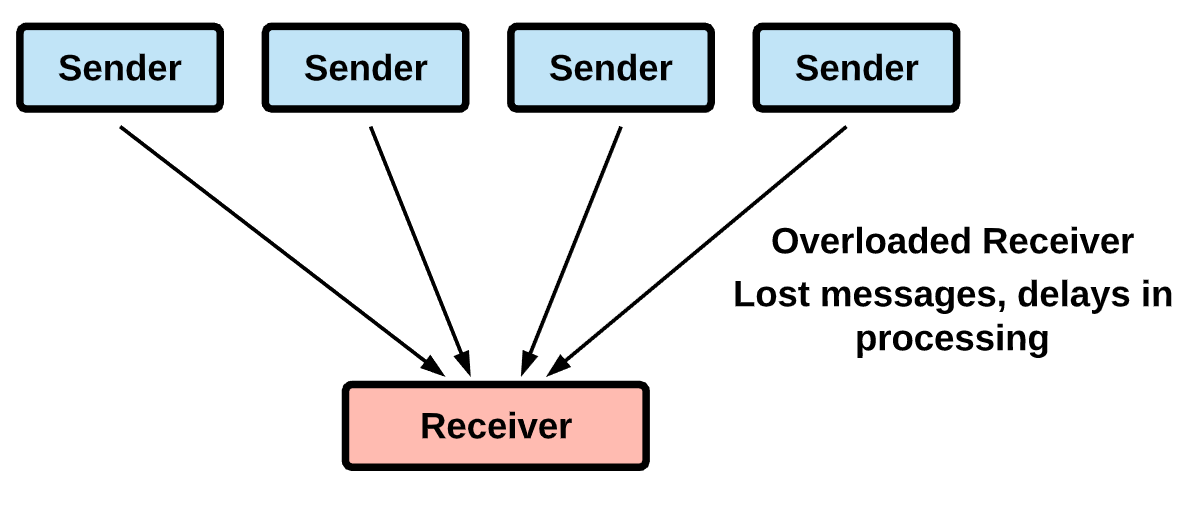

Tightly-Coupled System

Tightly (direct) coupled systems more likely to fail.

Question 2

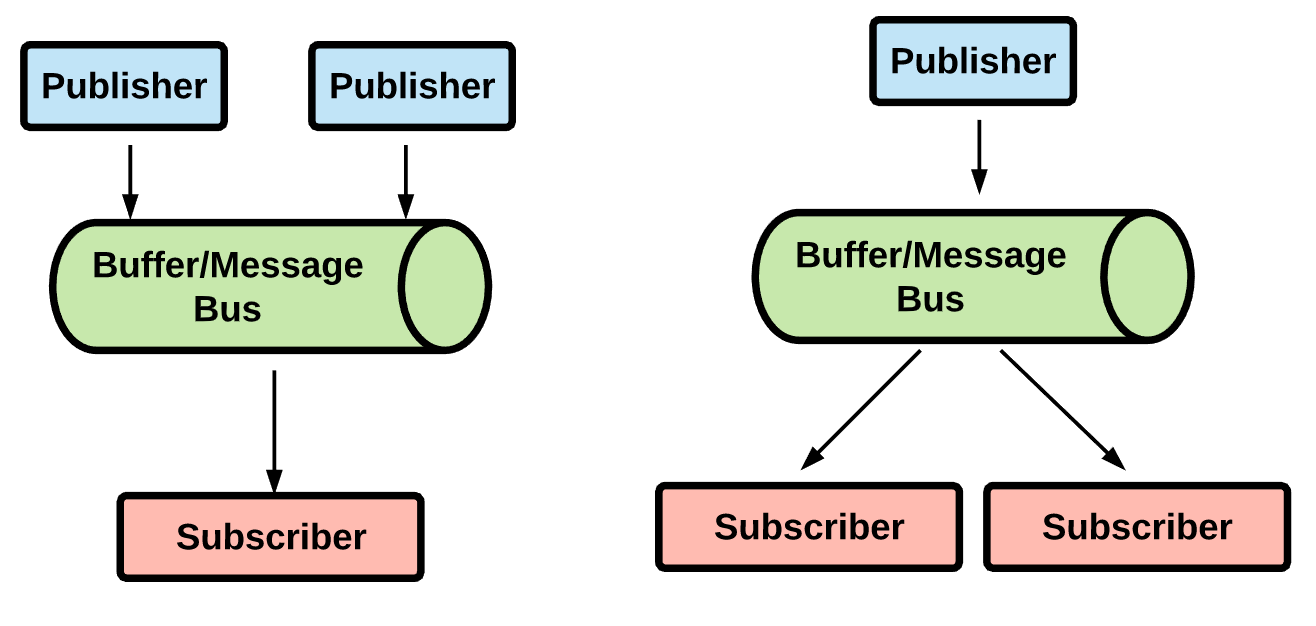

Loosely-Coupled System

Loosely coupled systems with ‘buffer’ scale have better fault tolerance.

Question 3

What is Cloud Pub/Sub?

• Global-scale messaging buffer/coupler.
• Serverless, NoOps (fully managed), global availability, auto-scaling.
• Decouples senders and receivers.
• Real-time or batch.
• 500 million messages per second
• 1TB/s of data

Question 4

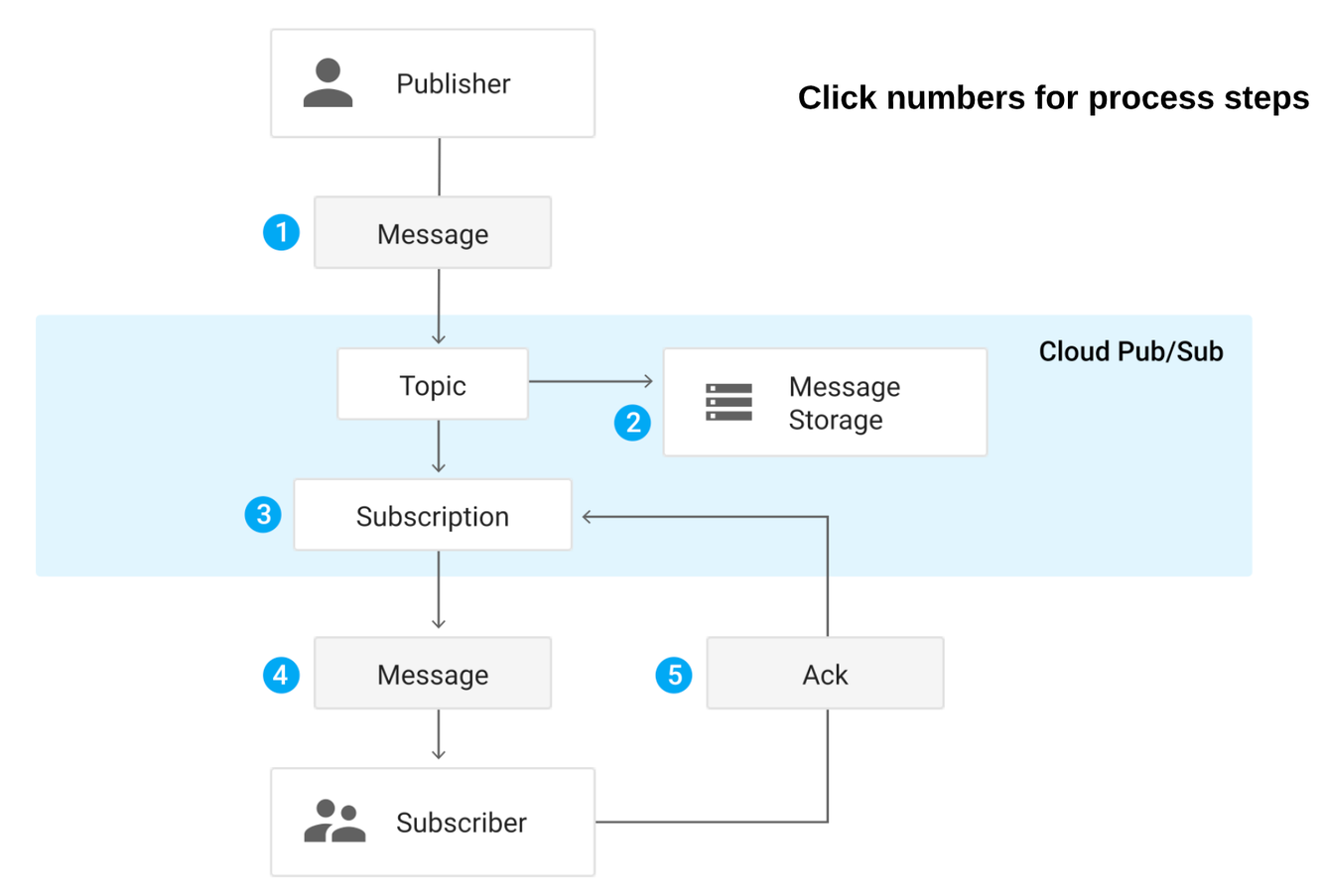

Pub/Sub Terminology

Topics, Messages, Publishers, Subscribers, Message Store

Messages are base64 encoded and 10Mb or less

Question 5

Push and Pull

• Pub/Sub can either push messages to subscribers, or subscribers can pull messages from Pub/Sub (default).
• Push = lower latency, more real-time.
• Push subscribers must be Webhook endpoints that accept POST over HTTPS.
• Pull is ideal for large volumes of messages, and uses batch delivery.
• Pull is preferred if efficiency and throughput of message processing is required.

  • In push delivery, one message per request is sent.
• Pulled messages must be acknowledged.

Question 6

IAM

• IAM allows for controlling access at project, topic or subscription level

  • Admin/Owner: project, snapshot, subscription, topic level
  • Editor: project, snapshot, subscription, topic level
  • Viewer: project, snapshot, subscription, topic level
  • Publisher: topic level
  • Subscriber: snapshot, subscription, topic level
• Service accounts are best practices
• Grant per-topic or per-subscription permissions
• Grant limited access to publish or consume messages.

https://cloud.google.com/pubsub/docs/access-control

Question 7

At Least Once Delivery

• Each message is delivered at least once for every subscription.
• Undelivered messages are deleted after the message retention duration (range is from 10 minutes to 7 days, with 7 days being default).
• Messages published before a subscription is created will not be delivered to that subscription.

Question 8

Out of Order Messaging

• Messages may arrive from multiple sources out of order.
• Pub/Sub does not care about message ordering.
• Dataflow is where out of order messages are processed/resolved.
• It is possible to add message attributes to help with ordering, e.g. timestamps.
• Consider alternatives for transactional ordering.

Question 9

Subscription Lifecycle

• Subscriptions expire after 31 days of inactivity.
• New subscriptions with the same name have no relationship to the previous subscription.
• A snapshot on the subscription is the easiest way to safeguard against application deployments, by providing point-in-time recovery. If the previous version of the application needs to be re-deployed, the subscription can be rolled-back to the point in time of the snapshot, and all subsequent messages will be re-processed.

Question 10

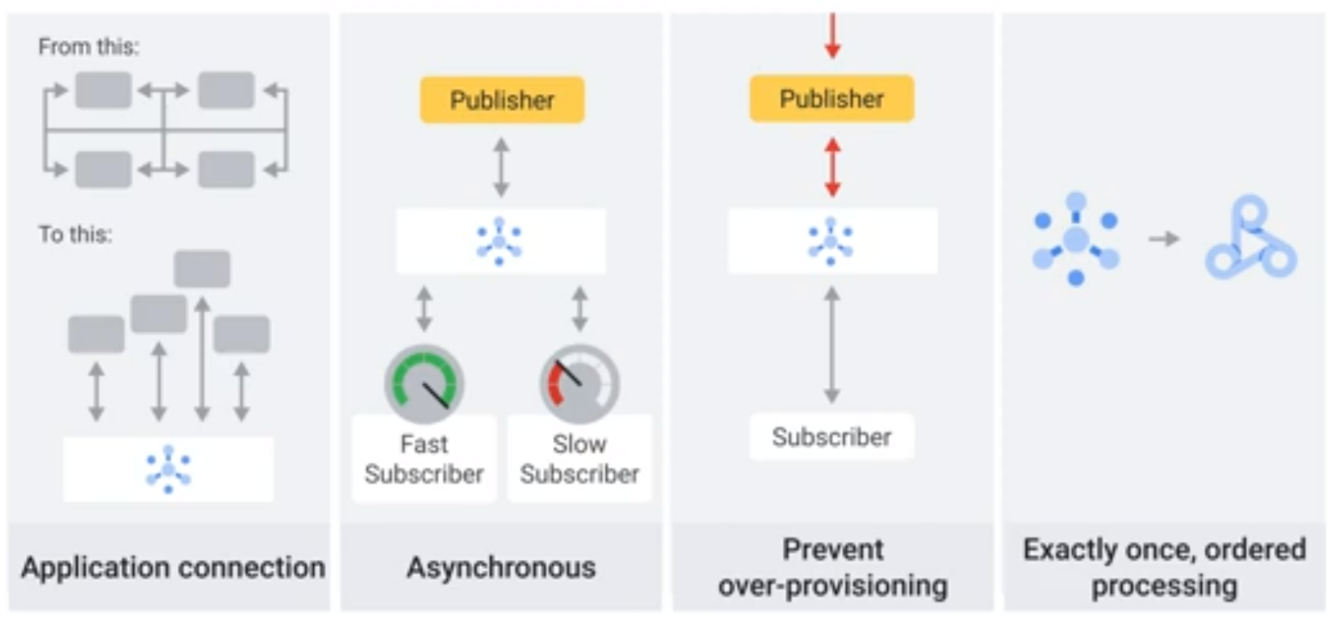

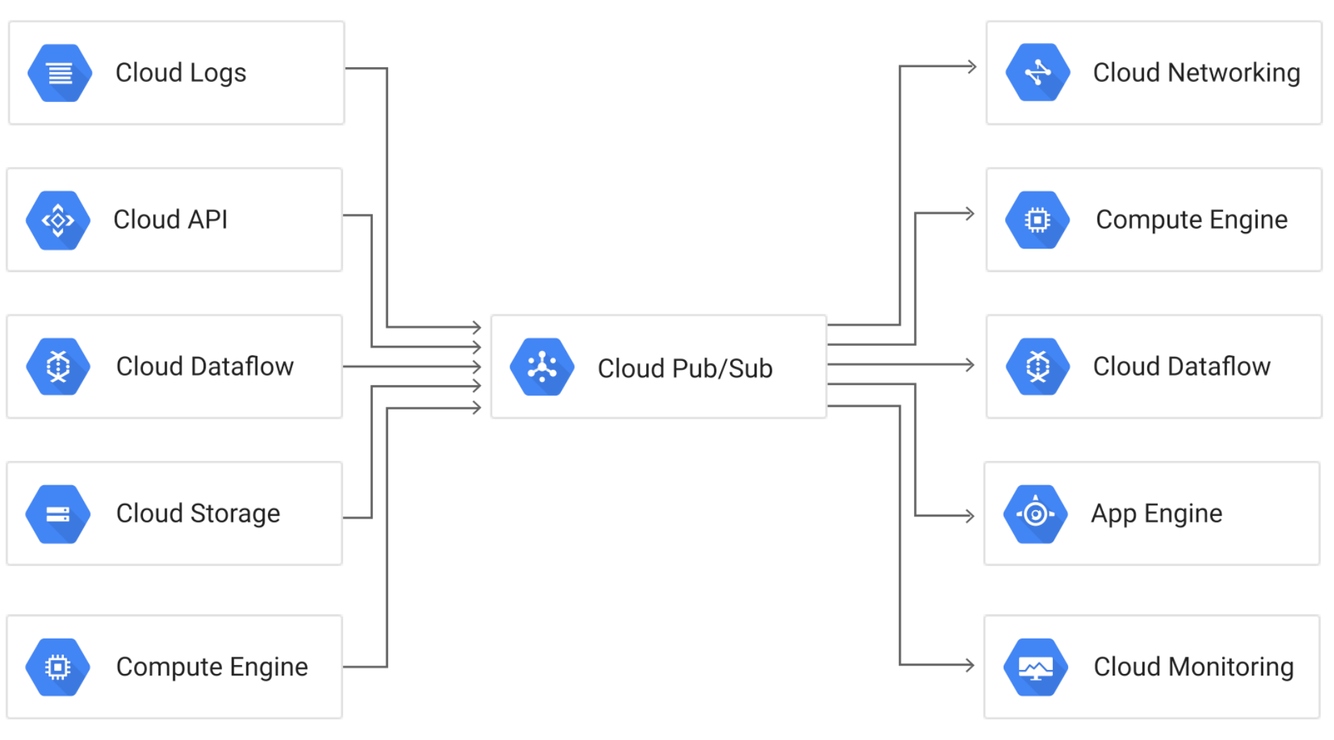

Common Applications

Question 11

Connecting Kafka to GCP

Does Pub/Sub replace Kafka?

• Not always
• Hybrid workloads:

  • Interact with existing tools and frameworks
  • Don’t need global/scaling capabilities with Pub/Sub
• Can use both: Kafka for on-premises and Pub/Sub for GCP in same data pipeline

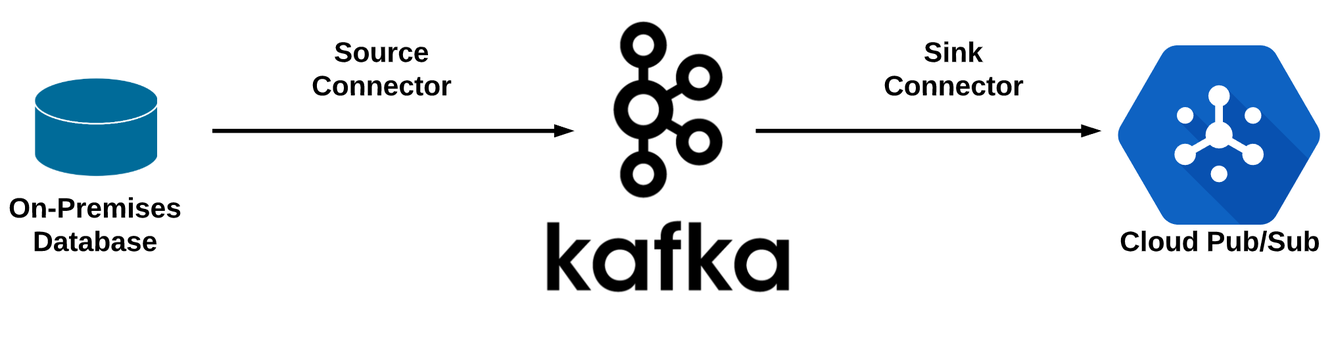

How do we connect Kafka to GCP?

Overview on Connectors:

• Open-source plugins that connect Kafka to GCP
• Kafka Connect: one optional “connector service”
• Exist to connect Kafka directly to Pub/Sub, Dataflow and BigQuery (among others)

Additional Terms

• Source connector: An upstream connector: Streams from something to Kafka
• Sink connector: A downstream connector: Streams from Kafka to something
