Nuclear Physics

Question 1

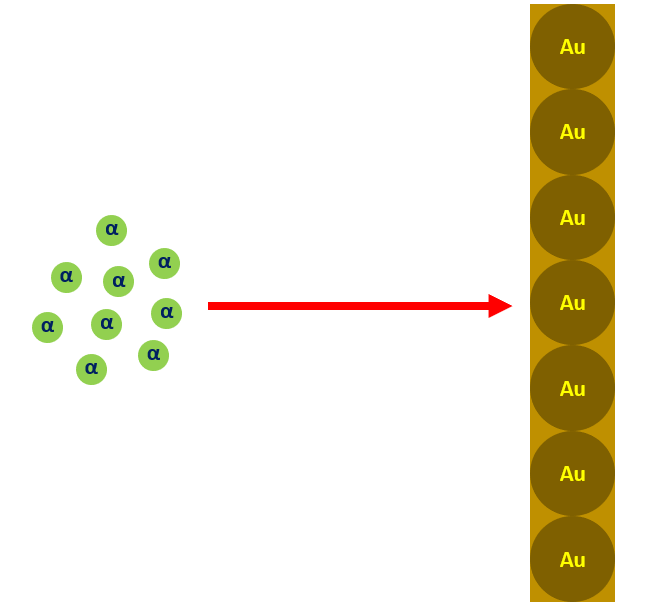

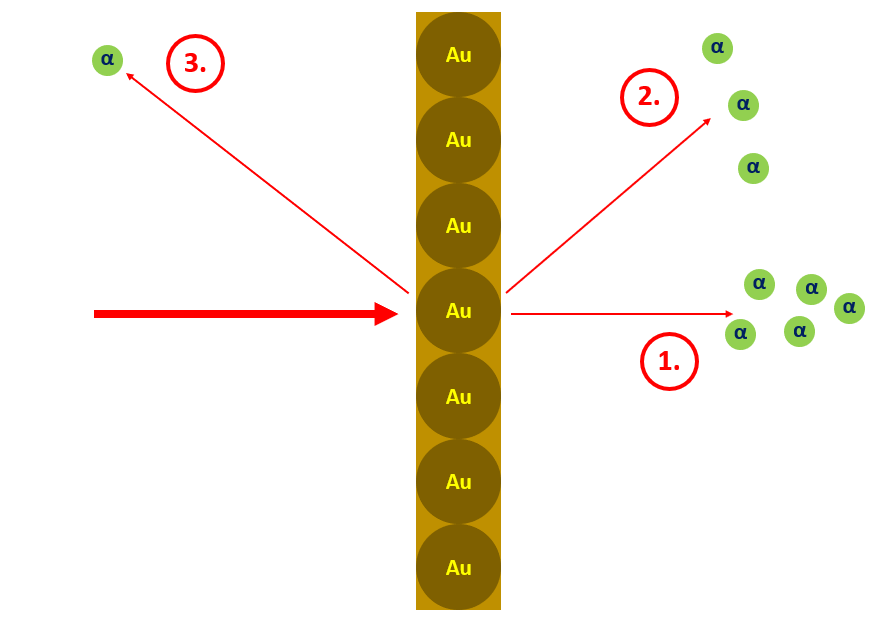

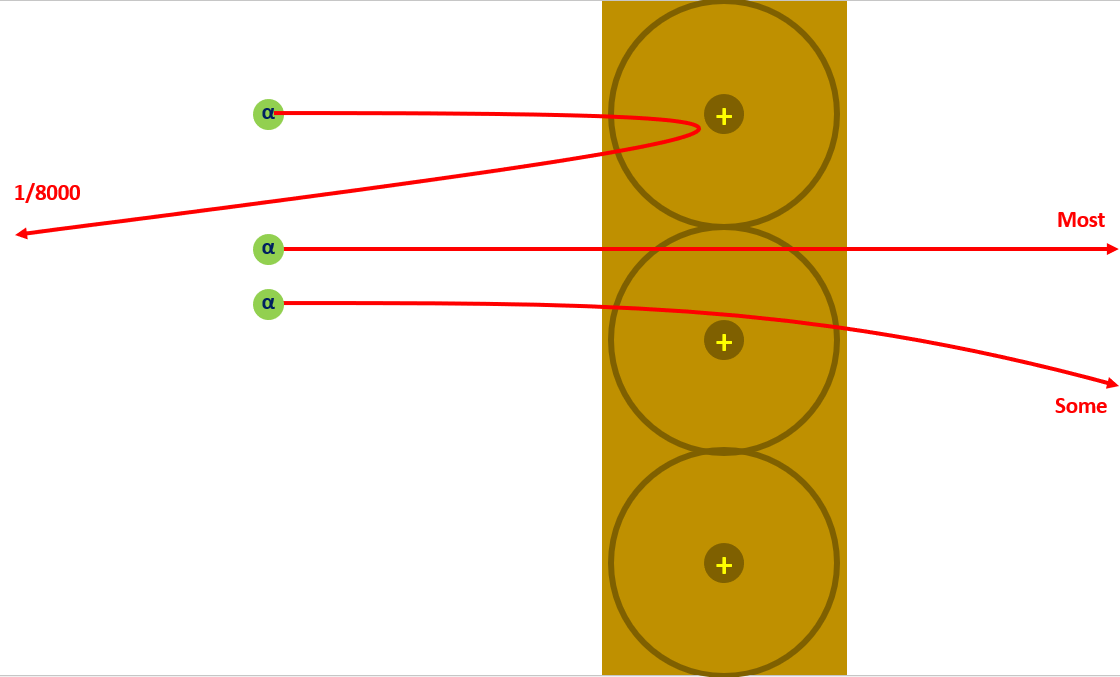

What happened in the Rutherford scattering experiment?

Answer 1

1. Most alpha particles passed through gold leaf undeflected
2. Some were slightly deflected
3. A tiny proportion (1 in 8000) reflected

Question 2

What did Rutherford’s experiment reveal about the atom?

Answer 2

1. Atom is mostly empty space
2. Centre of atom is small, dense and positively charged (nucleus)

Question 3

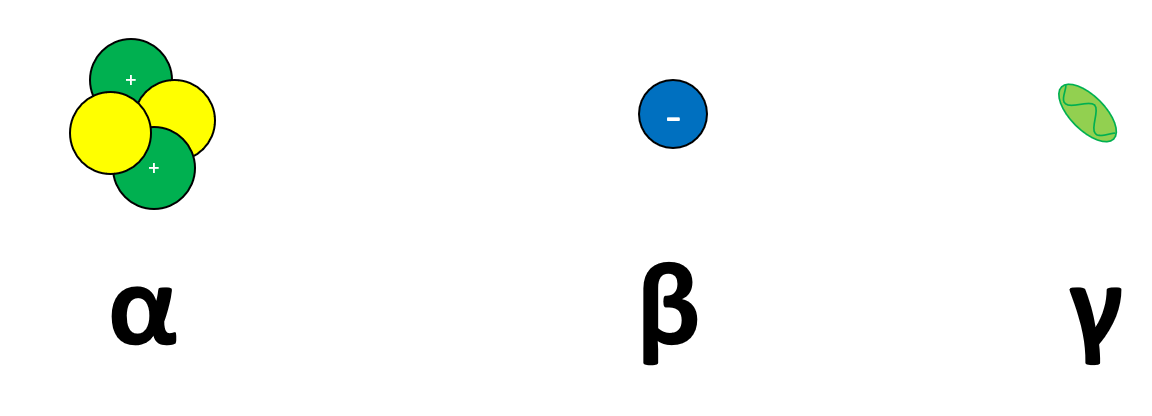

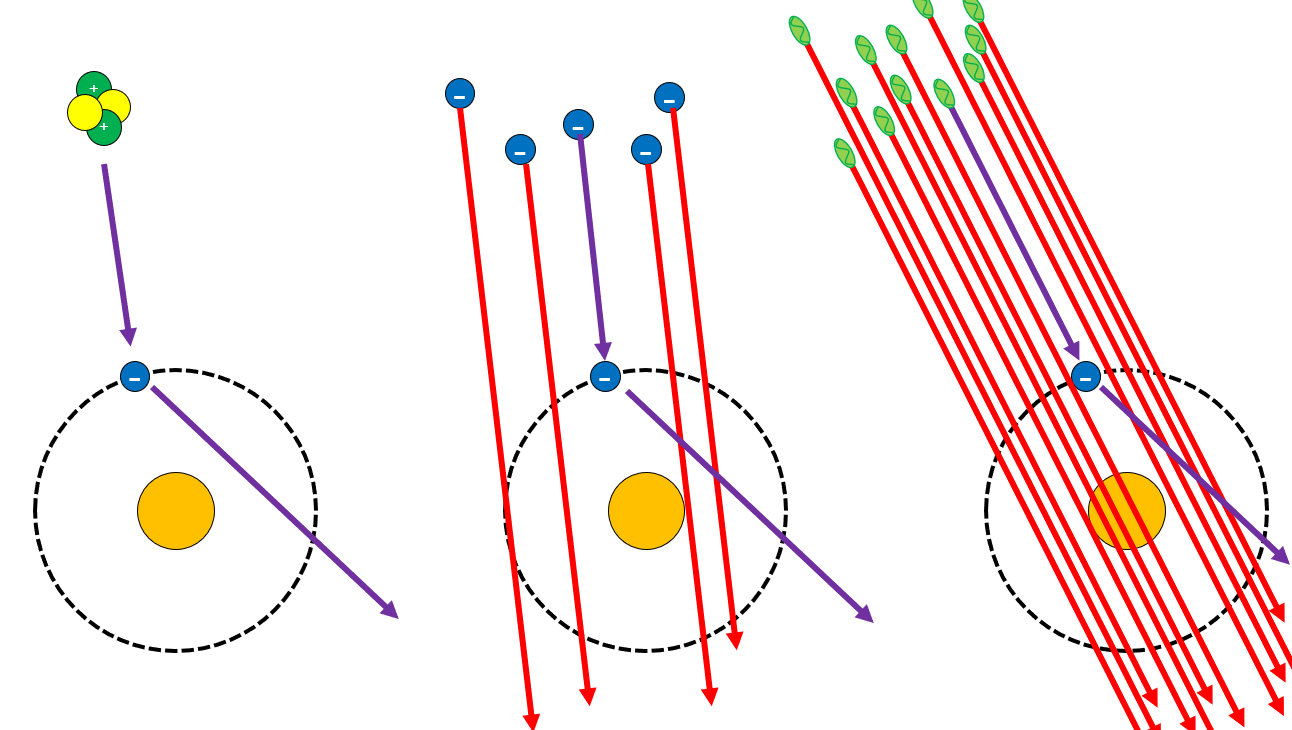

Compare the ionising power of the three main types of radiation

Answer 3

• *Alpha most ionising**
• *Beta medium ionising**
• *Gamma least ionising**

Question 4

Compare the penetrative power of the three main types of radiation

Answer 4

• *Gamma most penetrating**
• *Beta medium penetrating**
• *Alpha least penetrating**

Question 5

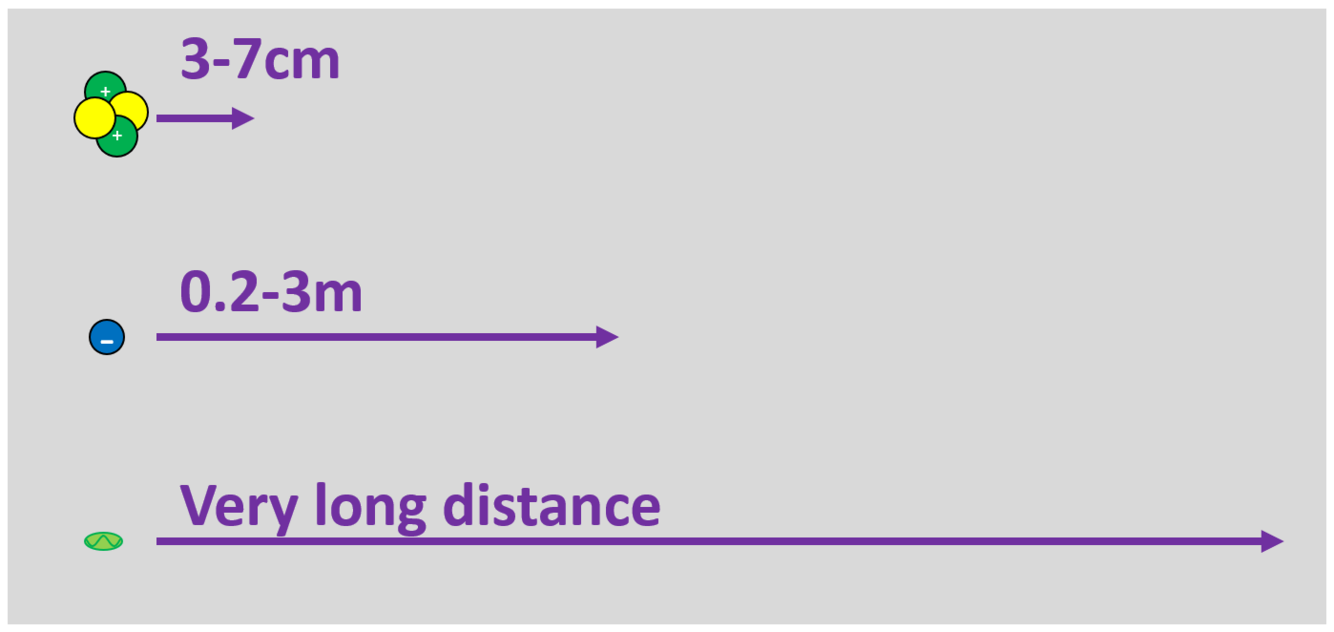

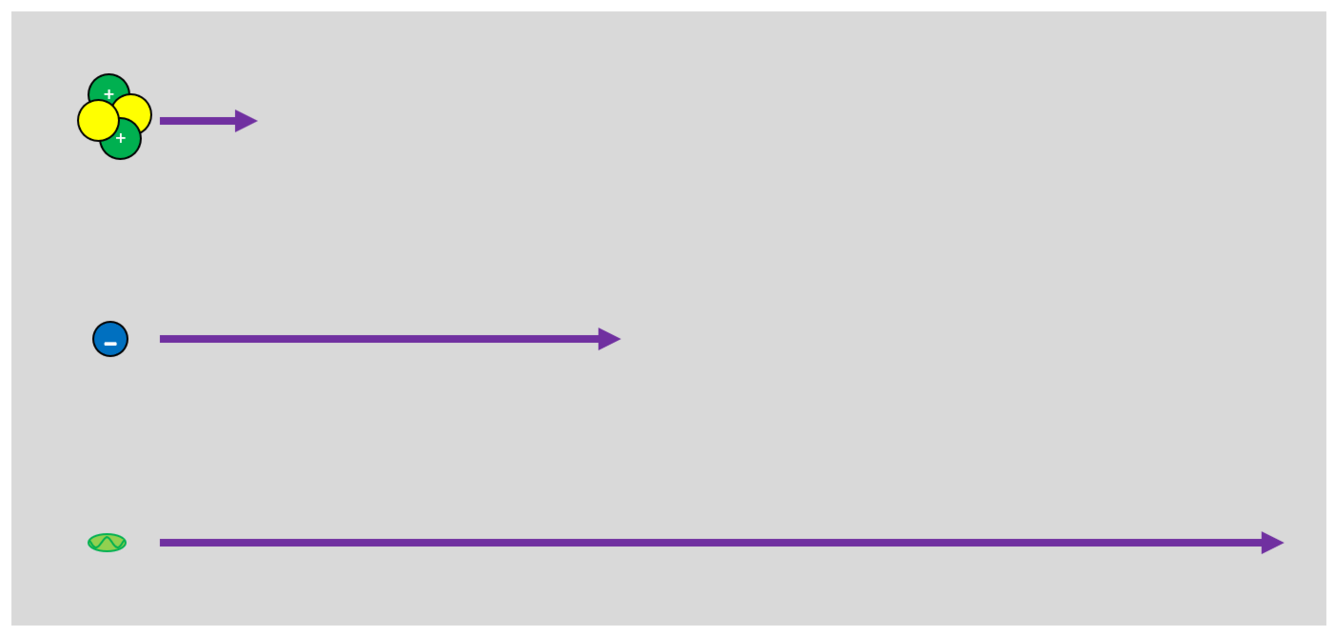

Compare the range of the three main types of radiation

Answer 5

Alpha = 3-7cm
Beta = 0.2-3m
Gamma = Very long distance

Question 6

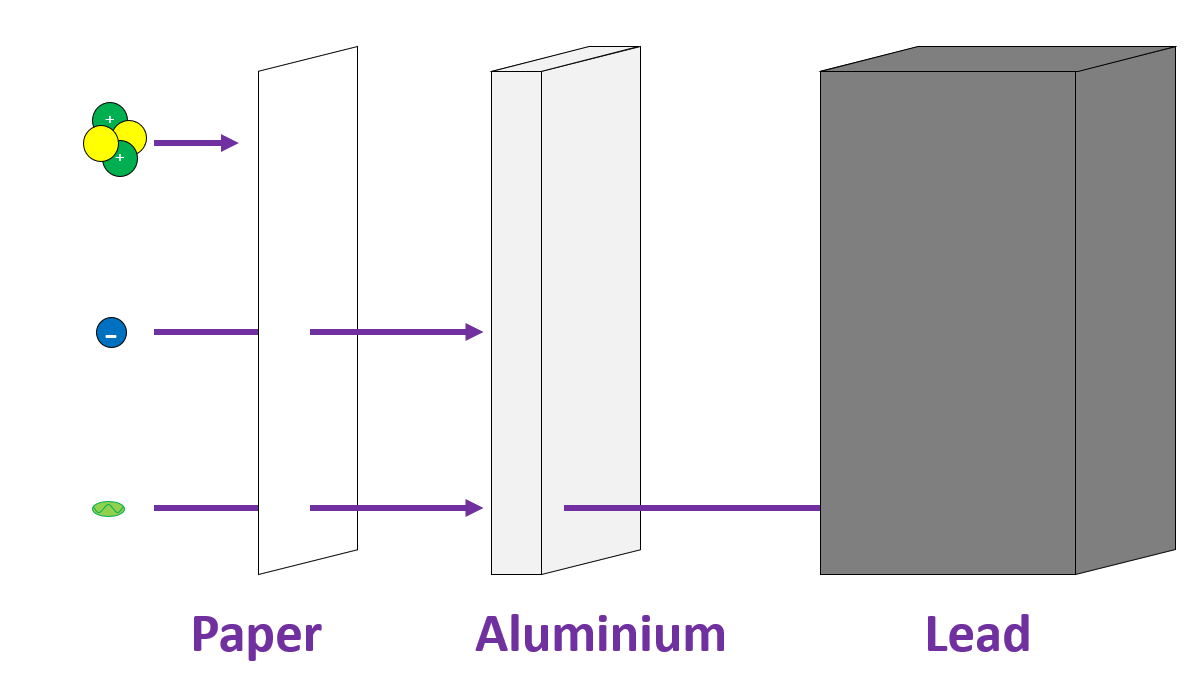

What materials can shield the three main types of radiation?

Answer 6

• *Alpha = Paper**
• *Beta = Aluminum**
• *Gamma = Lead or several meters of concrete**

Question 7

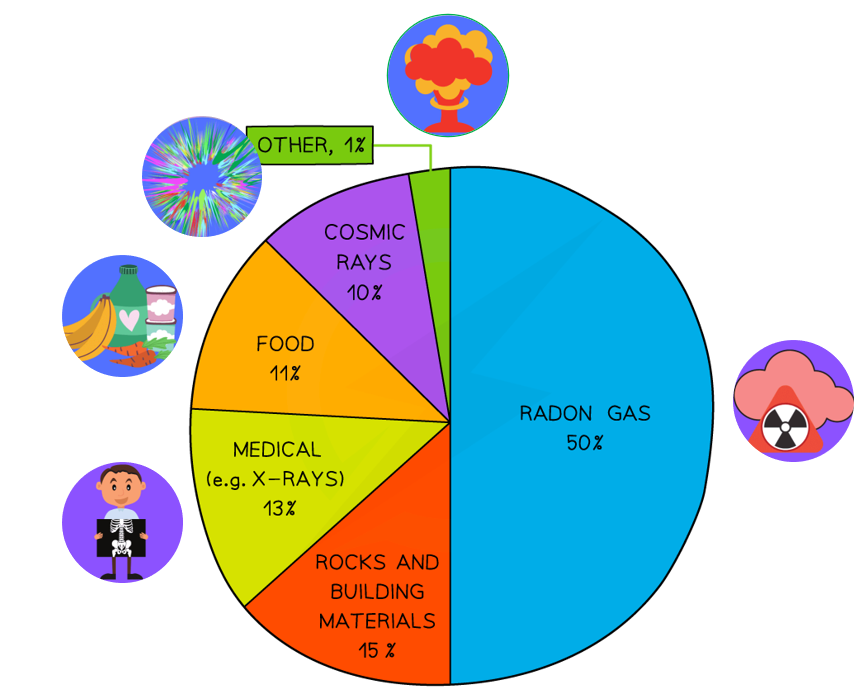

What are the main sources of background radiation?

Answer 7

Question 8

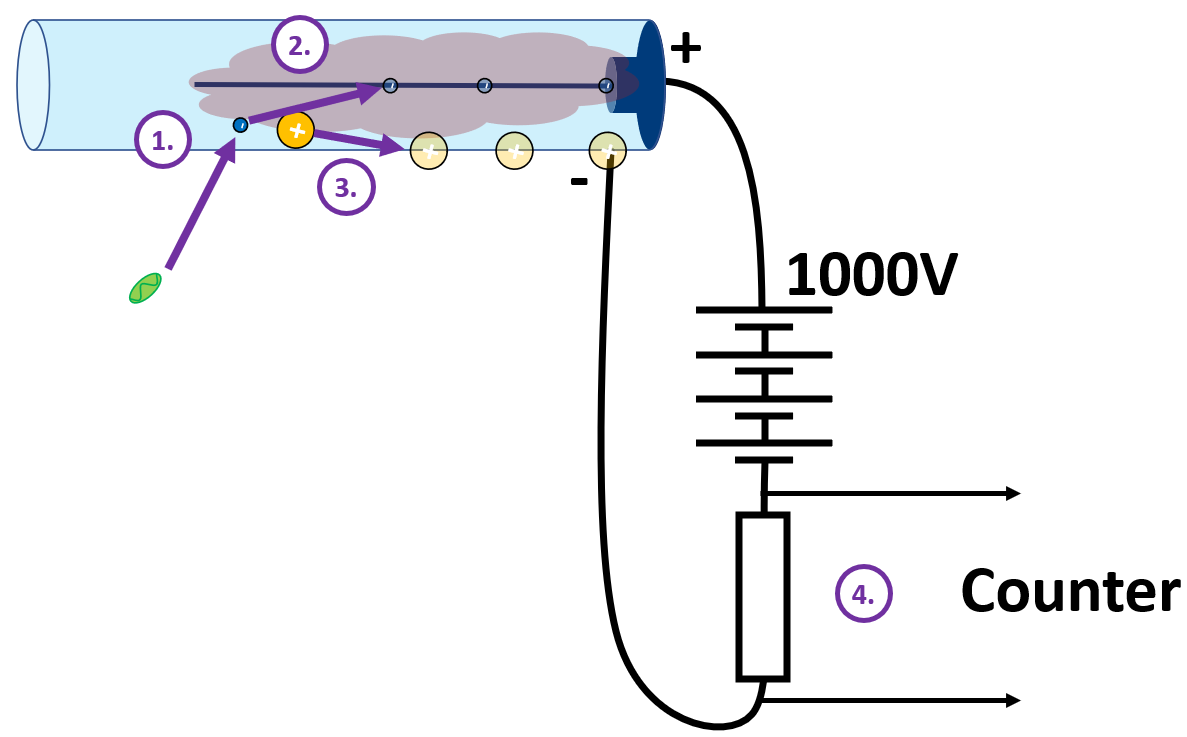

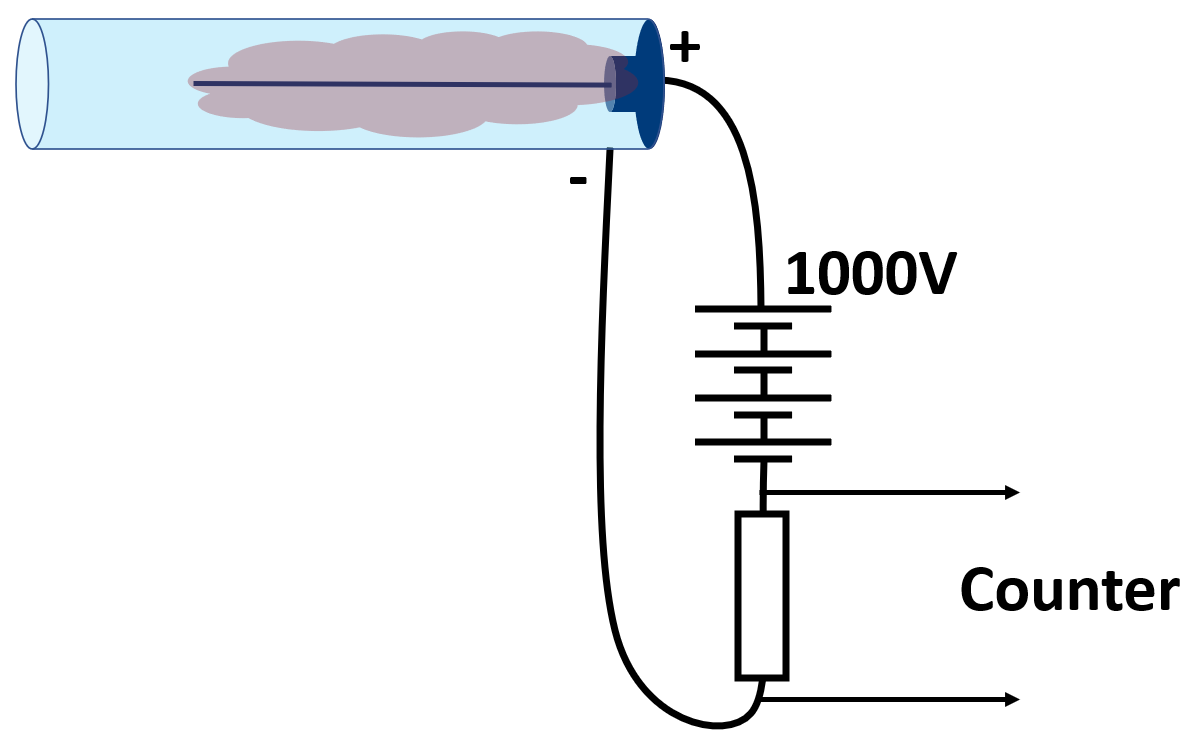

How does a Geiger-Muller tube detect radiation?

Answer 8

1. Radiation ionises gas in tube
2. Negative ions attracted to metal rod
3. Positive ions attracted to casing
4. Small current generated in circuit

Question 9

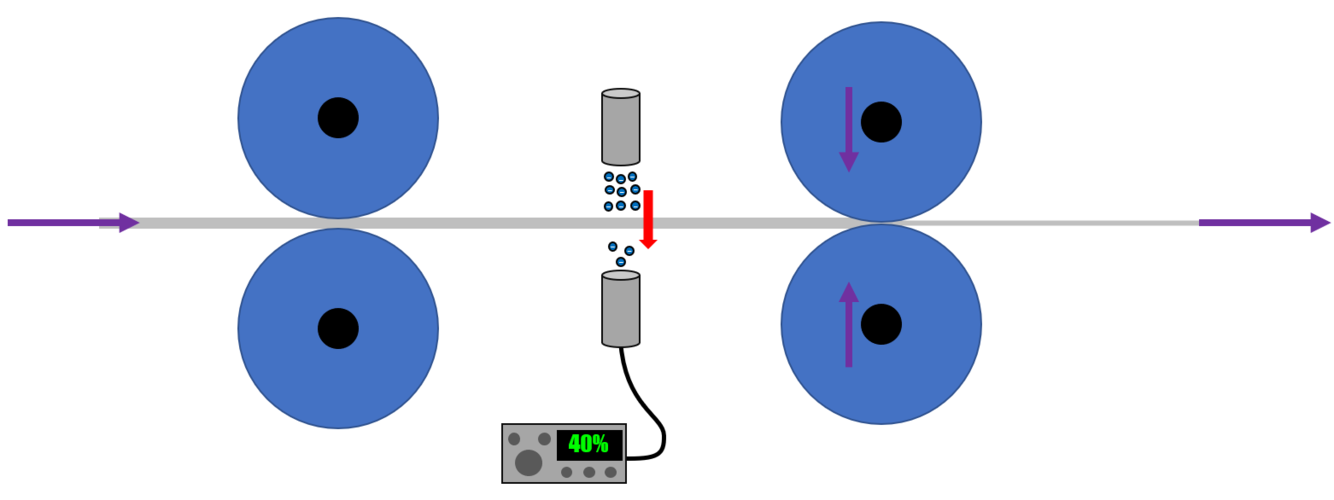

How is radiation used to control the thickness of metal?

Why can’t alpha radiation be used?

Answer 9

If detector count too low -> metal too thick -> Rollers move closer together

If detector count too high -> metal too thin -> Rollers move apart

Alpha won’t be detected

Question 10

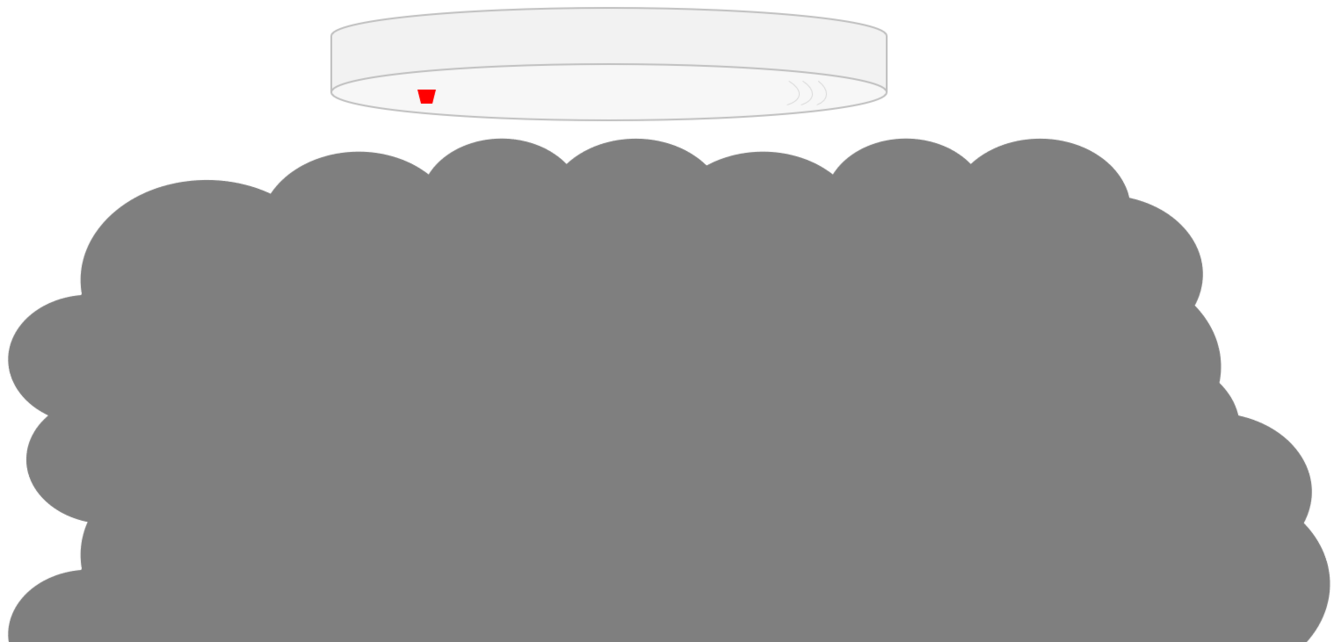

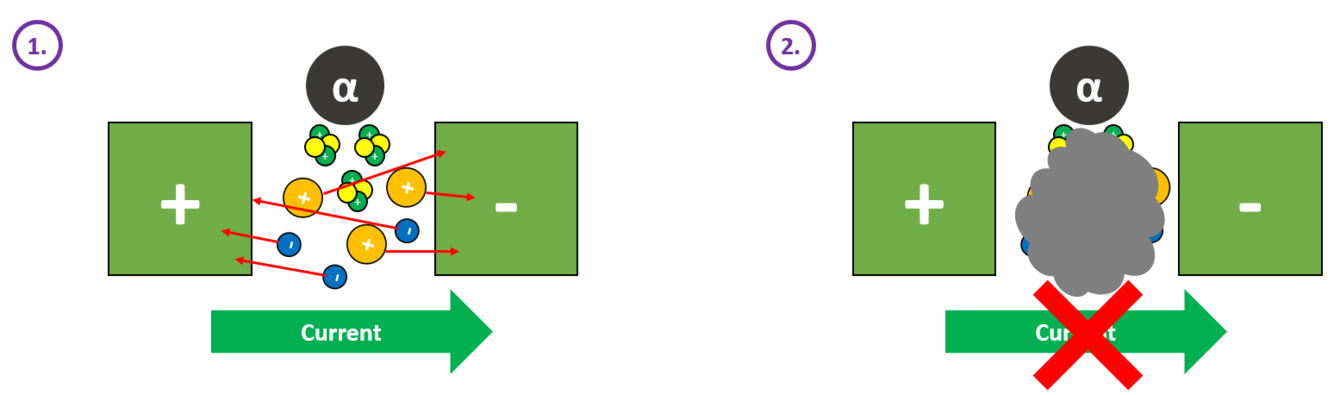

How is radiation used in a smoke detector?

Answer 10

Alpha radiation ionizes air between detector
Ionized air causes current to flow
Smoke blocks ionization of air
Current stops
Alarm sounds

Question 11

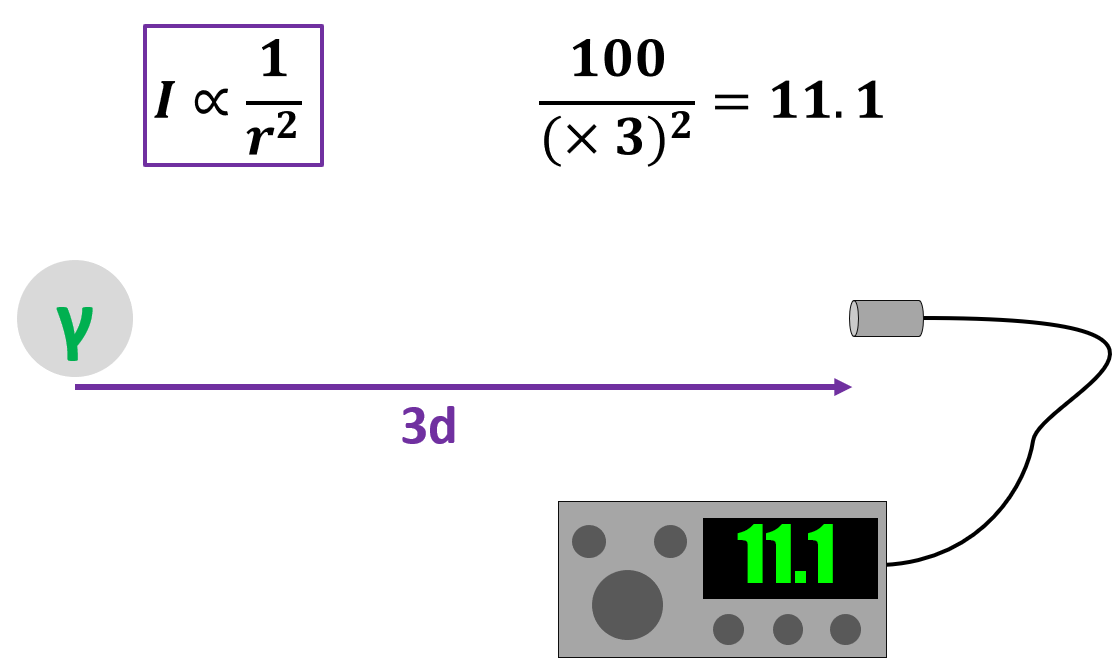

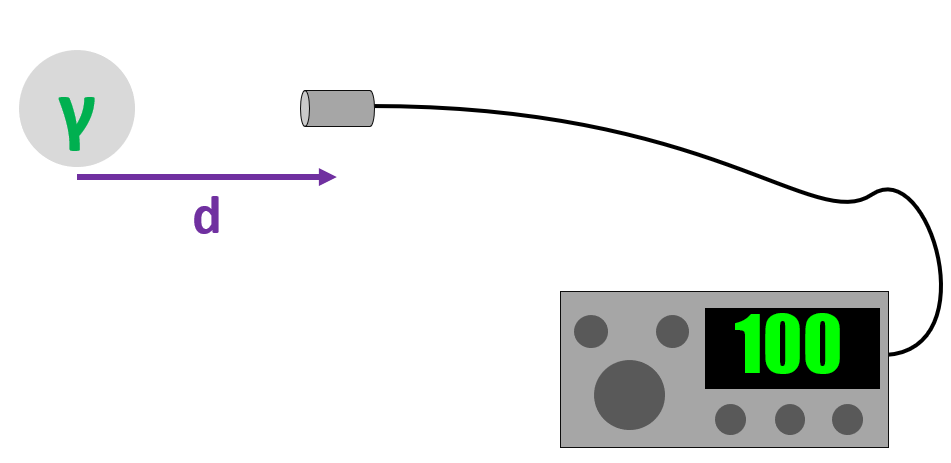

If the detector is moved 3x further away what will happen to the count rate?

Answer 11

9x smaller

Gamma radiation follows inverse square law

Question 12

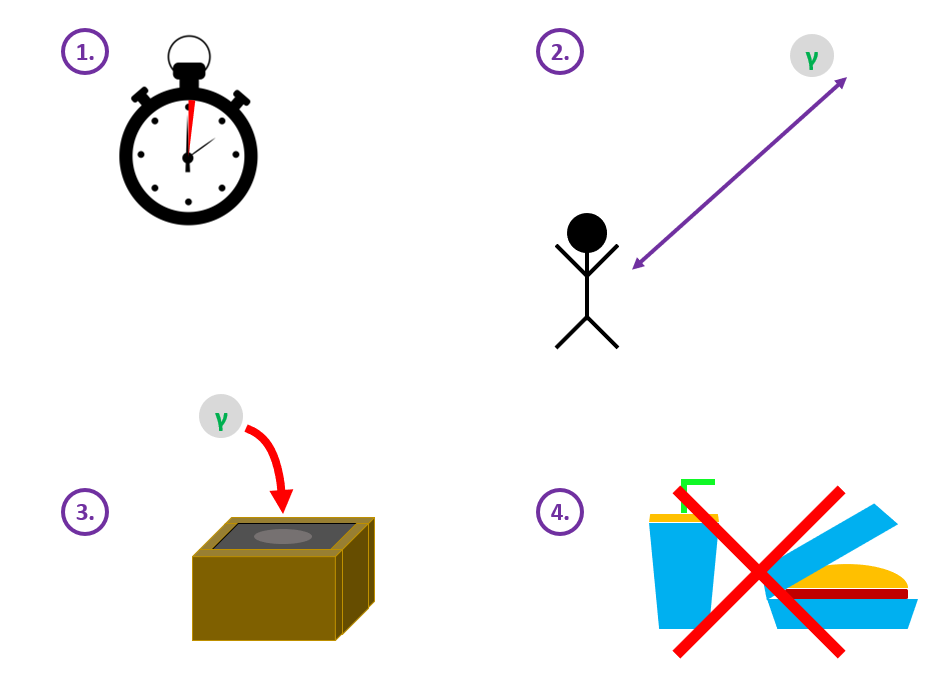

How should you safely use radiation?

Answer 12

1. Minimise exposure time
2. Maximize distance from source
3. Store in shielded containers
4. Don’t consume food or drink near source

Question 13

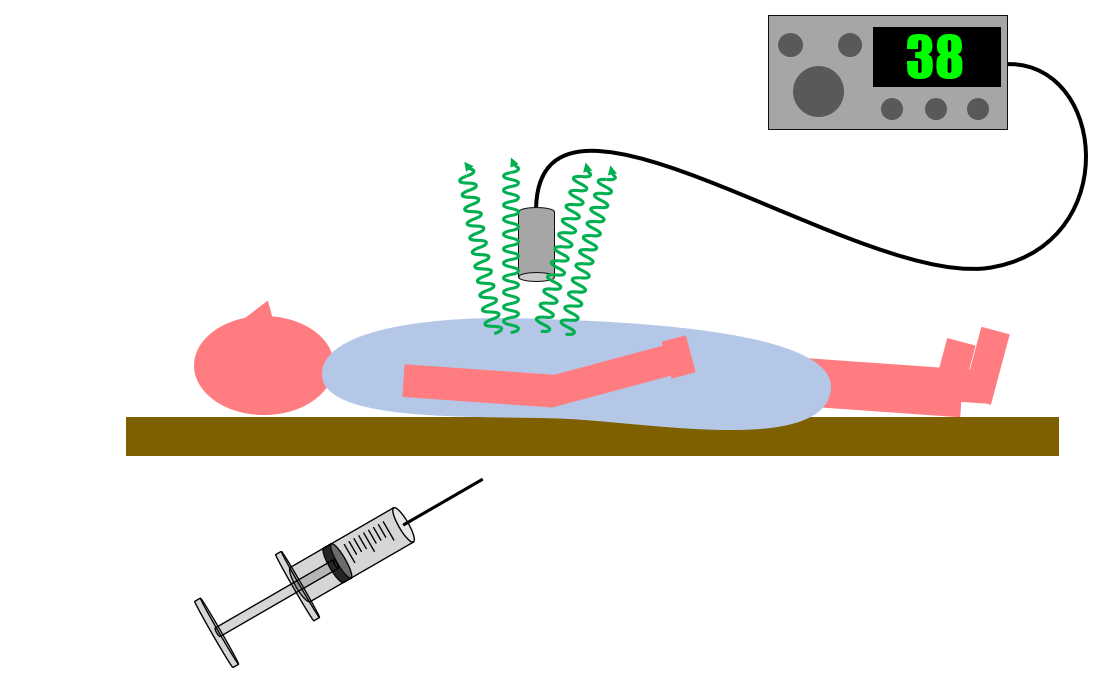

How is radiation used for medical imaging?

Answer 13

Medical tracer with short half life injected

Tumors absorb radionuclides and emit gamma

Gamma detected outside body

Question 14

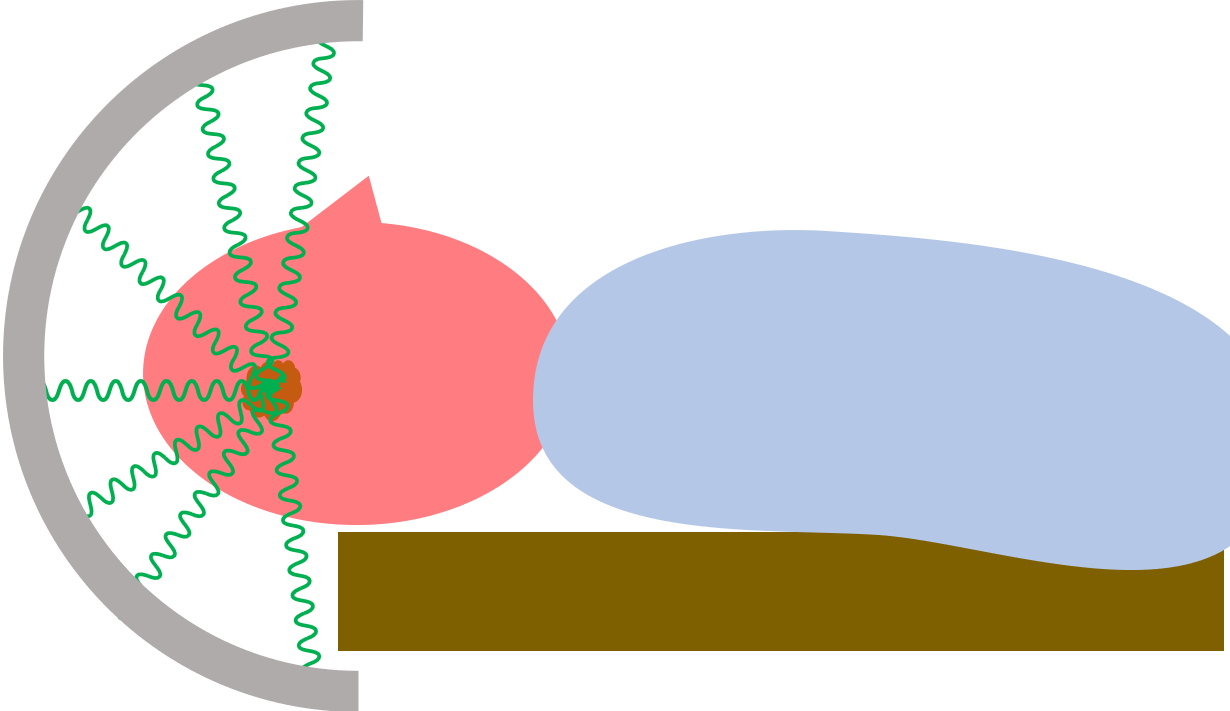

How is radiation used to destroy tumors?

Answer 14

Gamma radiation focused on tumor

High energy breaks apart tumor

Low levels through other tissue

Question 15

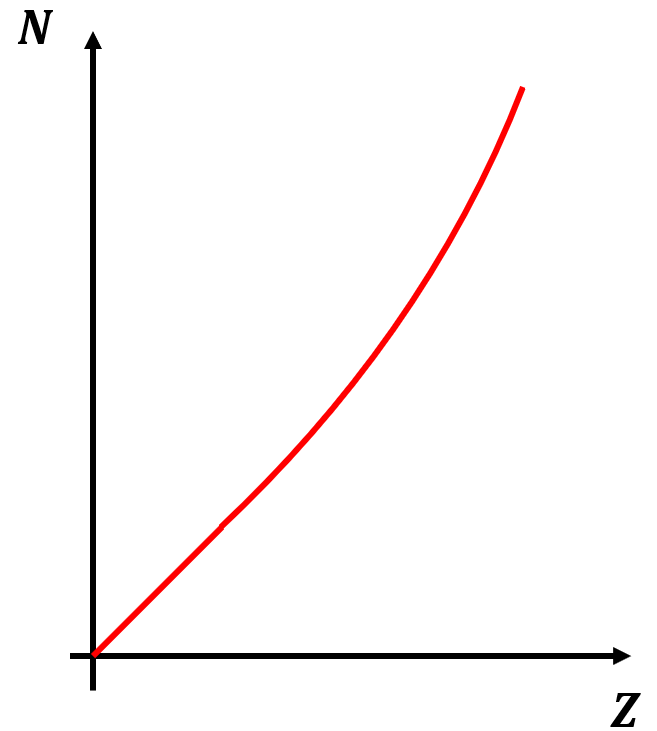

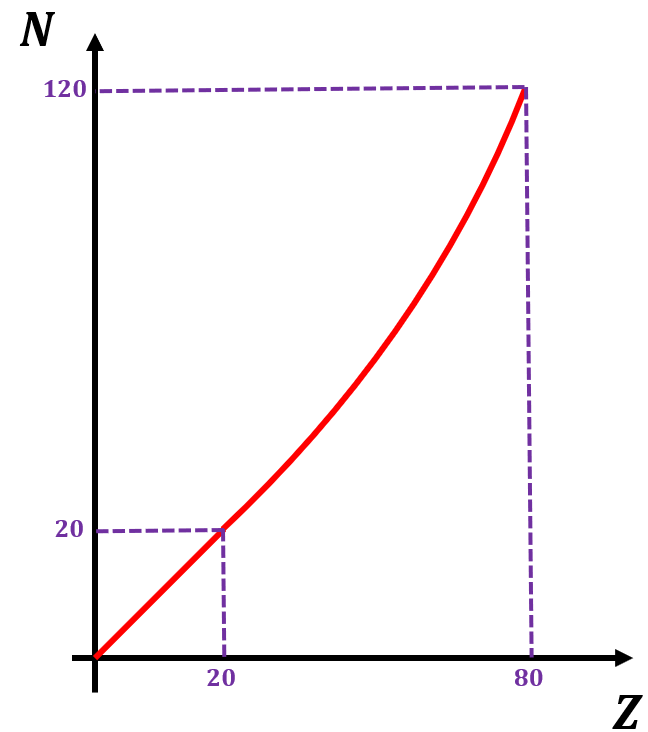

Sketch the graph of nuclear stability

Answer 15

Question 16

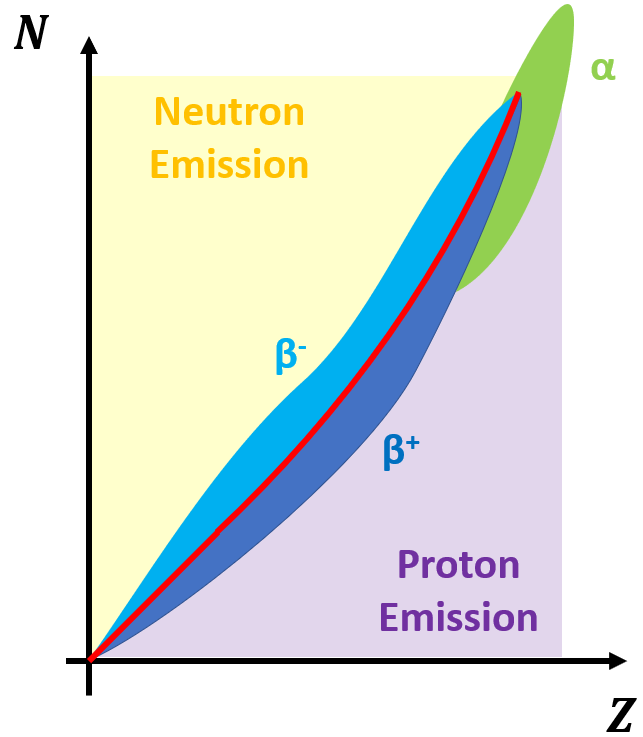

On this graph of nuclear stability highlight regions of the decays…

1. α
2. β^-
3. β⁺
4. Proton emission
5. Neutron emission

Answer 16

Question 17

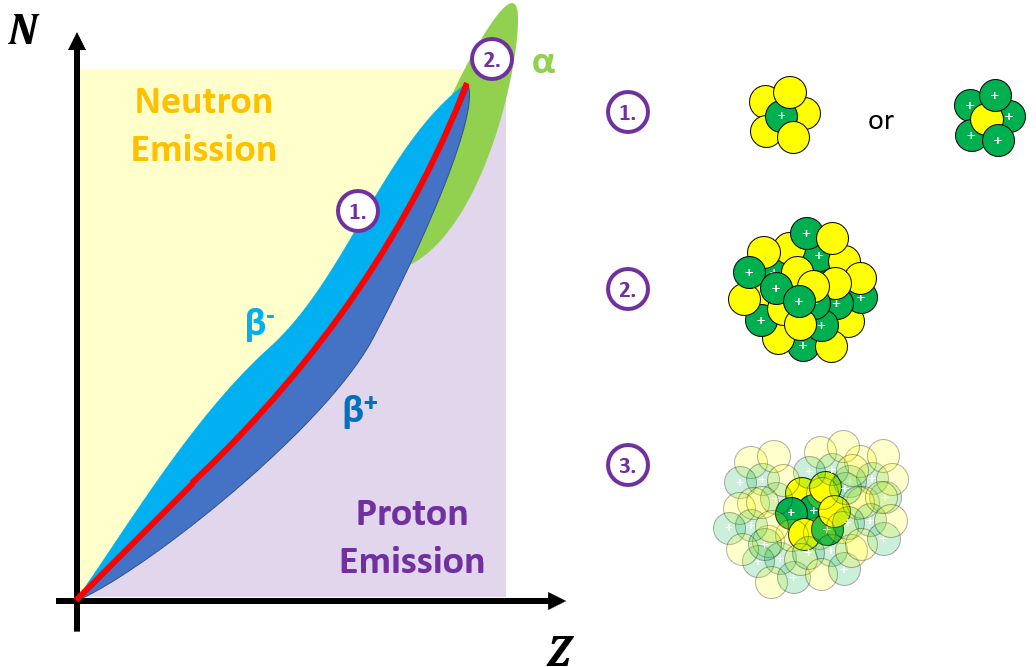

What makes a nucleus unstable? (and radioactively decay)

Answer 17

1. An incorrect balance of protons and neutrons (off line of stability)
2. Too many nucleons
3. Nucleus in excited state

Question 18

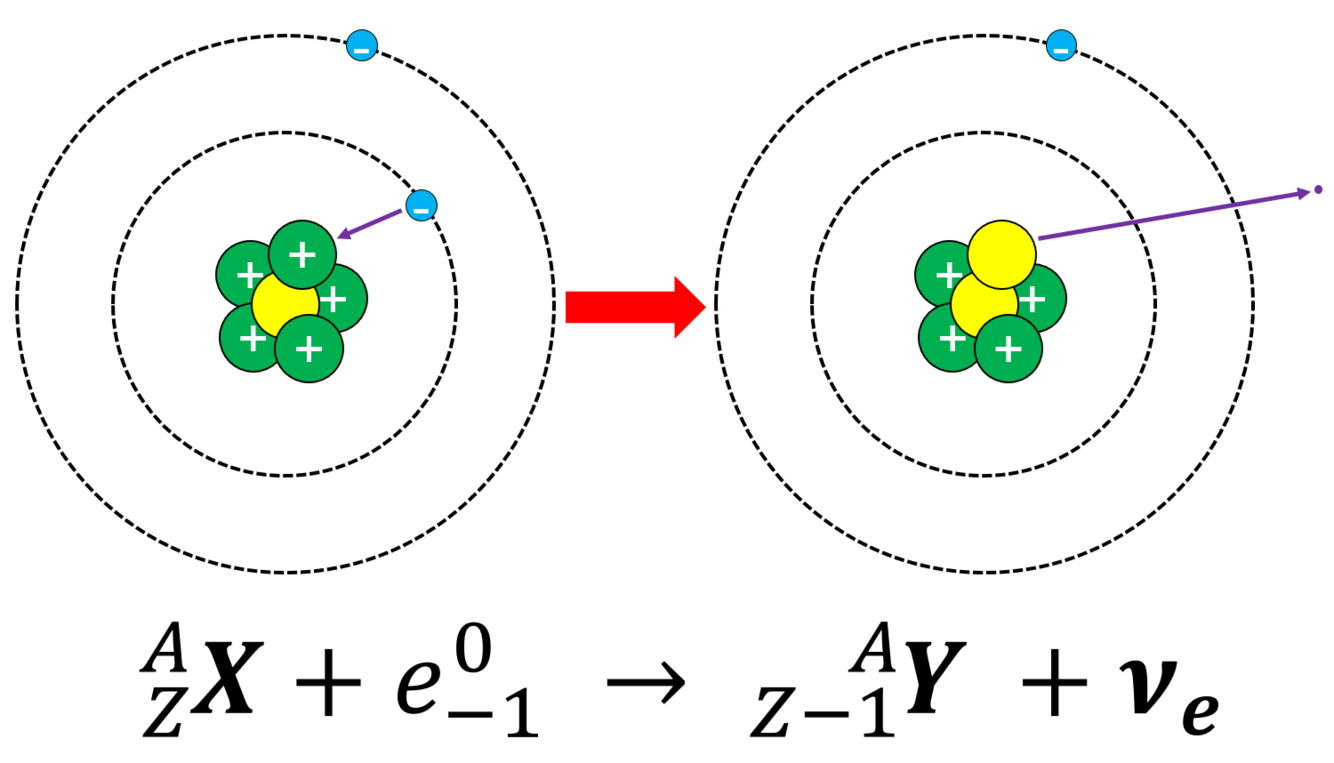

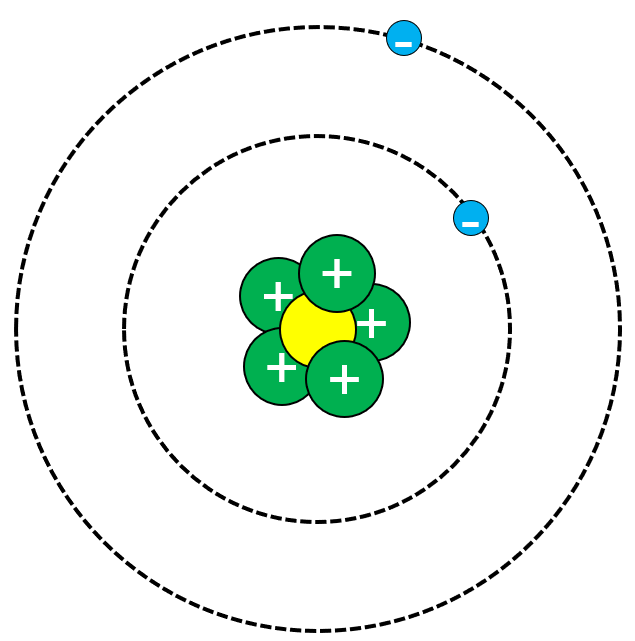

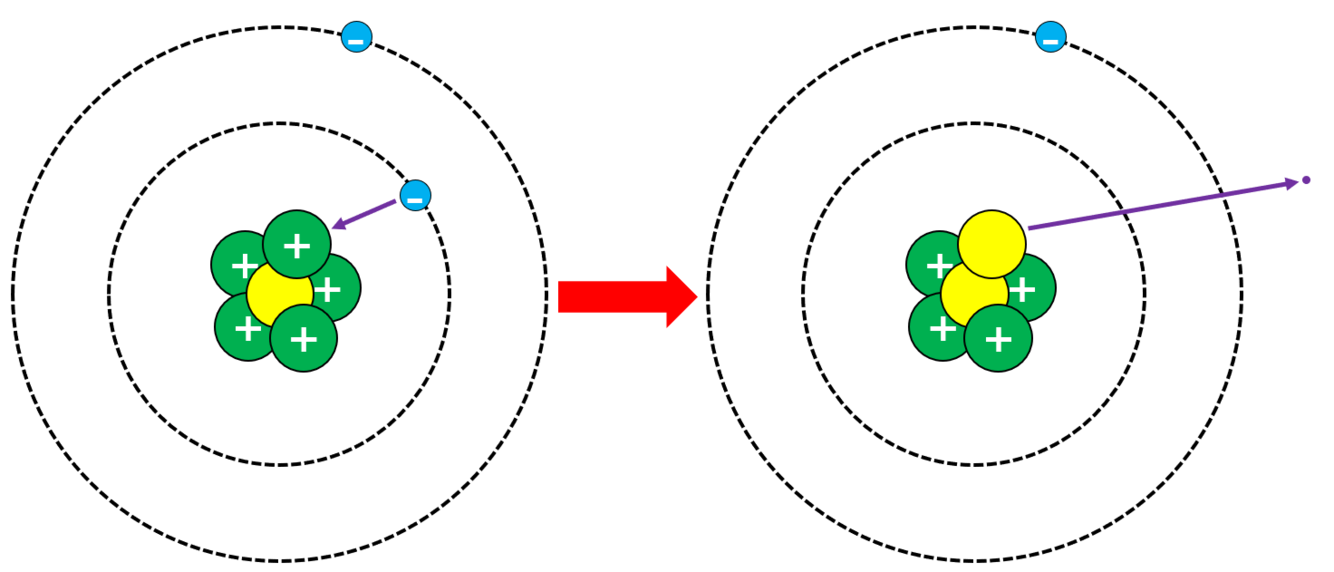

What is electron capture and what is it’s equation?

Answer 18

Proton captures inner shell electron and becomes neutron

Question 19

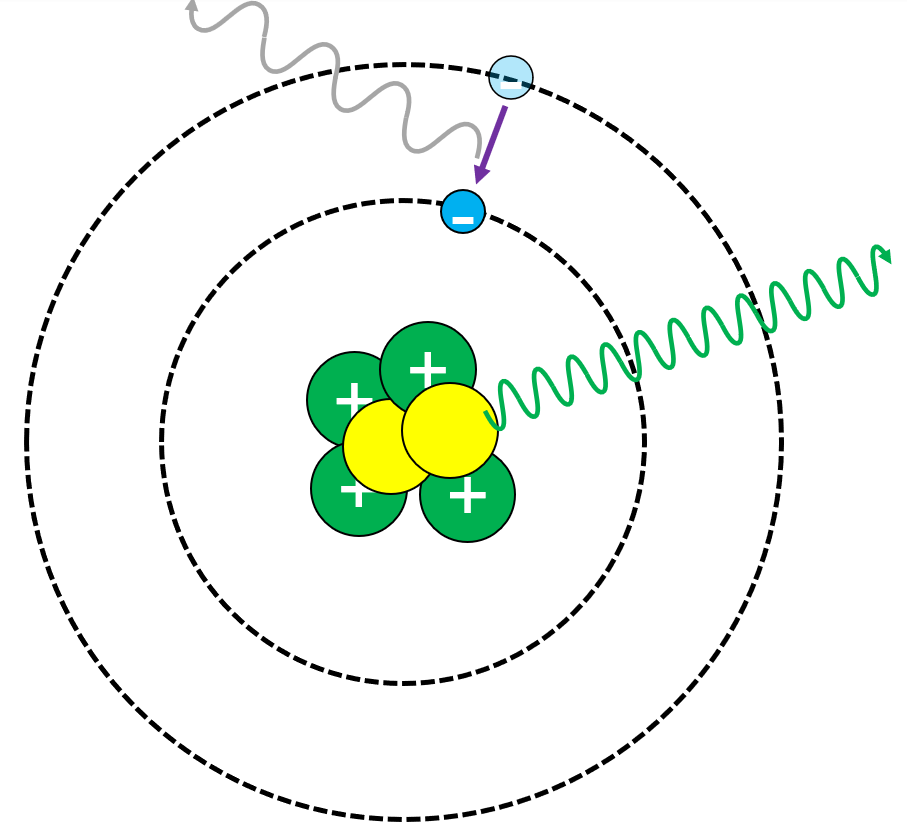

What two forms of radiation are released after electron capture?

Answer 19

X-ray → electron de-excites to fill inner shell

γ → Nucleus reorders and de-excites

Question 20

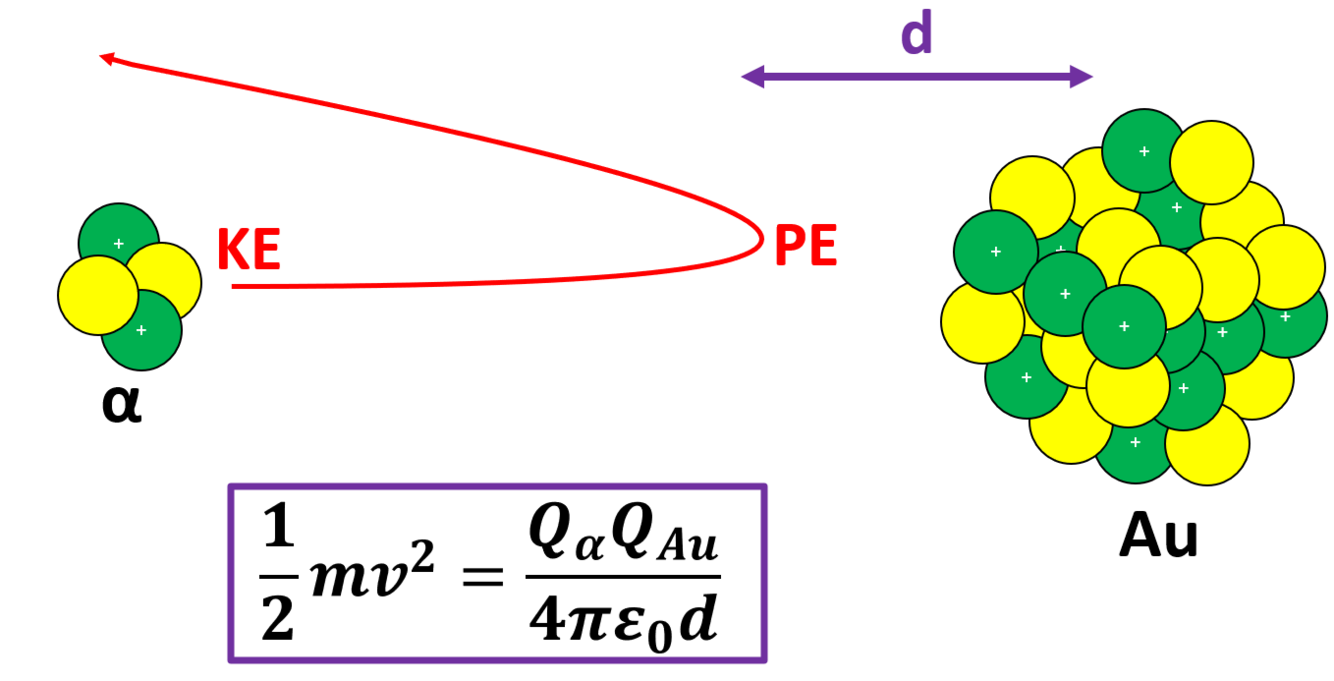

How does distance of closest approach work?

Answer 20

KE at distance → PE closest

Use to get rough size of nucleus

Question 21

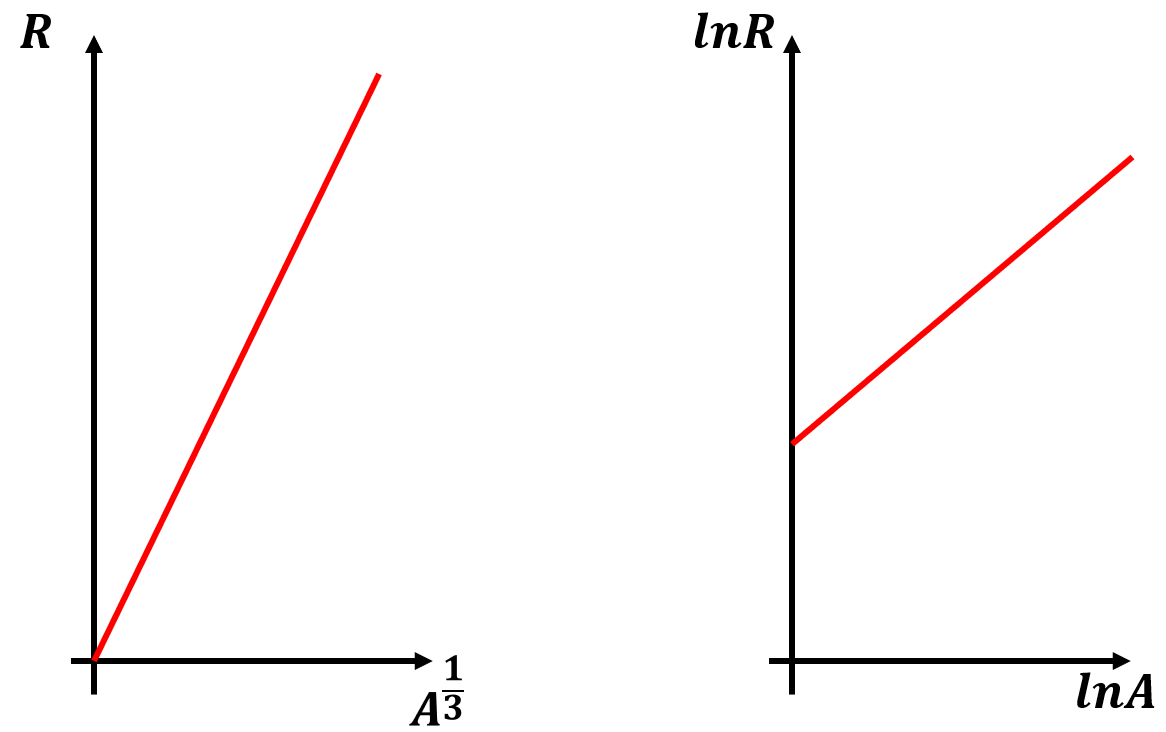

What two graphs could you plot to prove this relationship?

Answer 21

Question 22

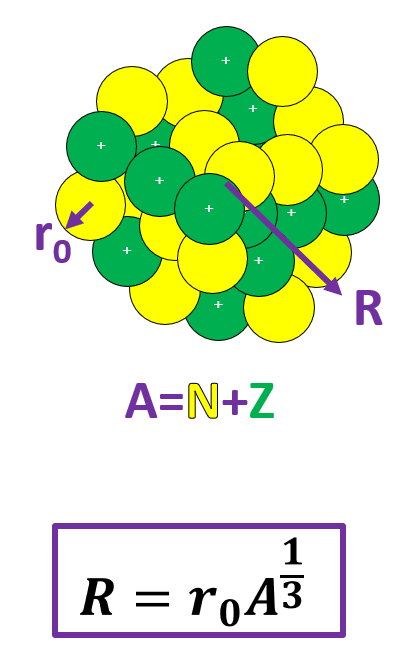

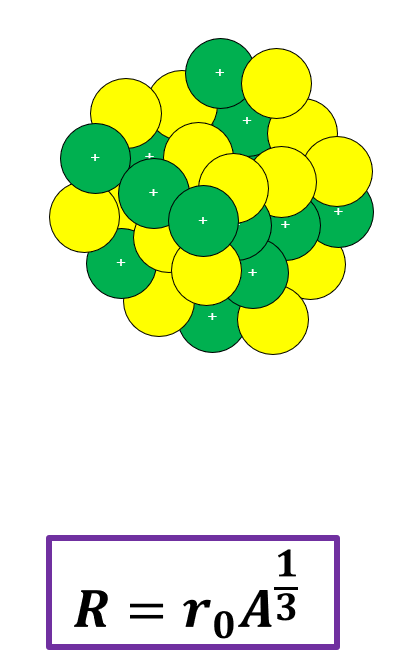

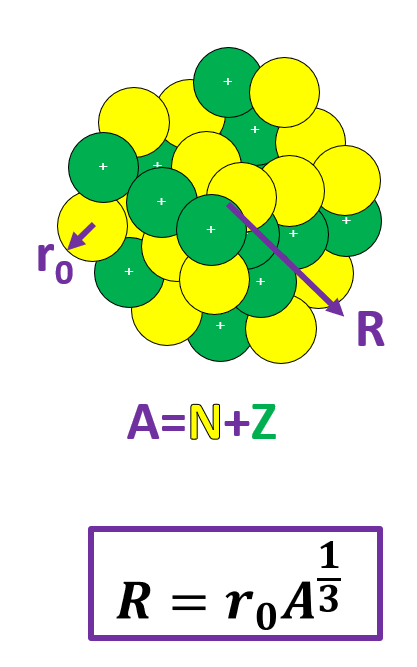

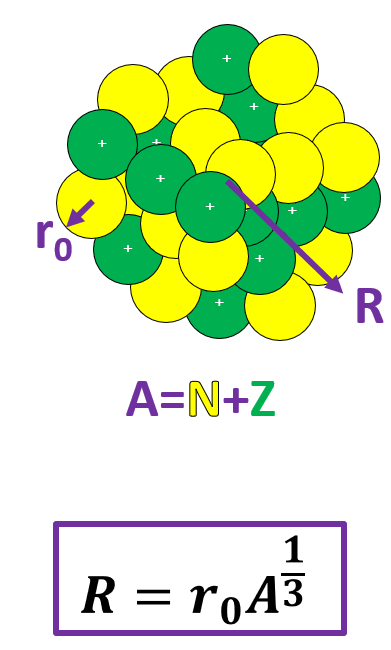

What does r₀ represent?

Answer 22

Average radius of each nucleon

Question 23

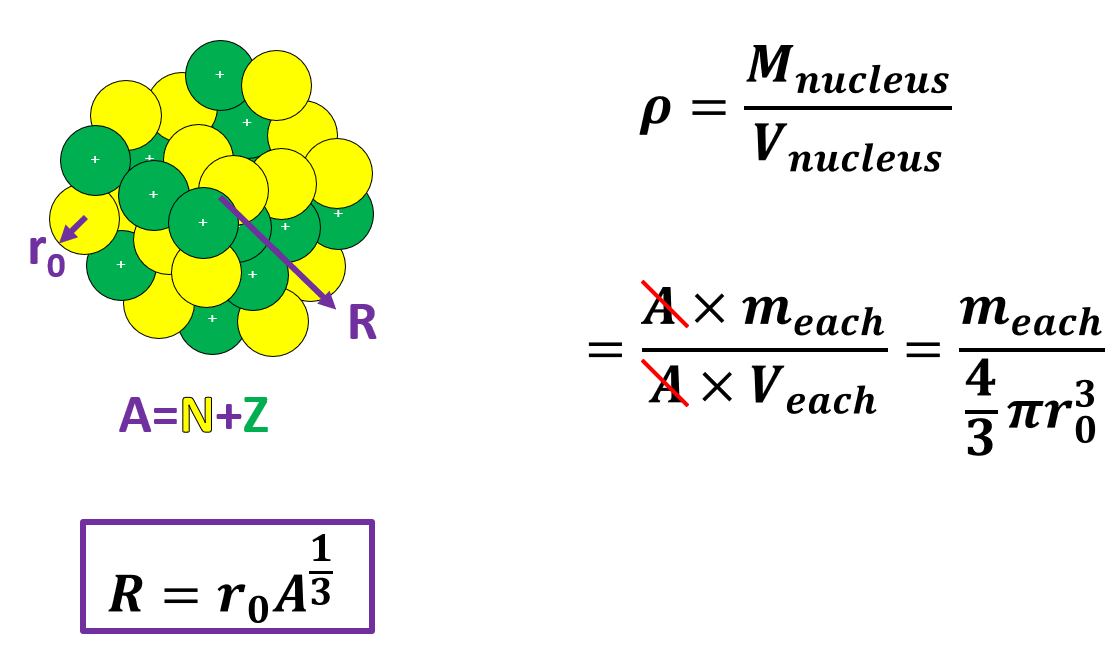

How do you calculate the average density of a nucleus?

Answer 23

Question 24

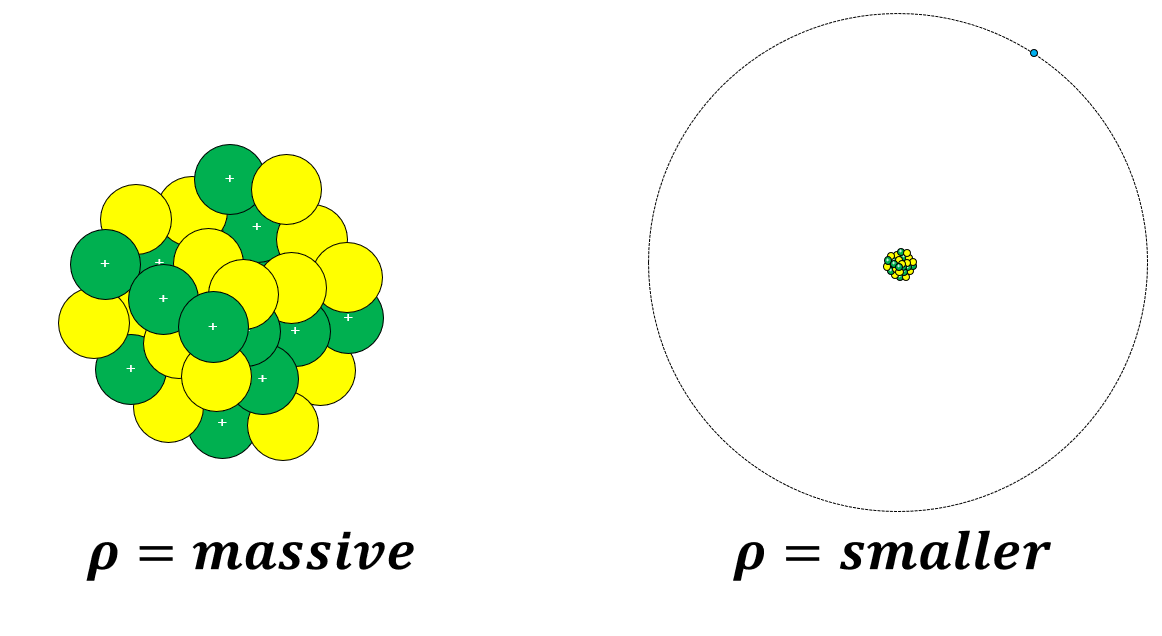

Why is the average nucleus density so large? (∼2.3x10¹⁷kgm^-3)

Answer 24

Atom is mostly empty space

Question 25

How was **electron scattering** used to **determine nuclear diameter**?

Answer 25

Graph plotted First minima used to calculate diameter (Don't need to know equation)

Question 26

How is **electron scattering better than alpha recoil** to determine nuclear radius?

Answer 26

**Alpha Recoil** * Closest approach so only an estimate * Recoil of nucleus not considered * Effect of strong force not known **Electron Scattering:** * Not affected by strong force (leptons) * Electron **λ_db tunable**

Question 27

Define the **decay constant** **λ**

Answer 27

The **probability** that an unstable isotope **decays in one second**

Question 28

What's wrong with this calculation?

Answer 28

**Activity and time must be the same units**

Question 29

Define the **activity, A**, of a radioactive sample

Answer 29

The **total number** of unstable isotopes that **decay after one second**

Question 30

What does the activity, A, of a radioactive sample depend on?

Answer 30

1. The **decay constant** **λ** 2. The **number if unstable isotopes N**

Question 31

Define the **half life, T_½,** of a radioactive sample

Answer 31

Time taken for either… 1. Activity of sample to halve 2. **Number of unstable isotopes remaining to halve**

Question 32

How do you **derive the half life T_½** equation?

Answer 32

Set **N as 0.5N₀**

Question 33

What do the **gradient** and **y-intercept** of this graph represent?

Answer 33

where r₀ → **average radius of nucleon**

Question 34

1. Derive the equation of this graph 2. What are the **gradient** and **y-intercept**?

Answer 34

Question 35

How do you **prove this graph is exponential**?

Answer 35

Find **multiple T_½ and compare**

Question 36

What is the **gradient** of this graph?

Answer 36

r₀ → **average radius of nucleon**

Question 37

If this unstable isotope of caesium **decays by** **α** **emission** where does it end up on the graph?

Answer 37

N → neutron number Z → Proton Number

Question 38

If this unstable isotope of caesium **decays by** **β^-** **emission** where does it end up on the graph?

Answer 38

N → neutron number Z → Proton Number

Question 39

If this unstable isotope of caesium **decays by** **β⁺** **emission** where does it end up on the graph?

Answer 39

N → neutron number Z → Proton Number

Question 40

How is **electron scattering** used to determine the **diameter of a nucleus**?

Answer 40

1. Tune debroglie wavelength of electron close to size of nucleus 2. Find **angle of first minima** 2. Use equation to solve for D (do not need to learn equation)
