7 Functions of spinal column
-protection of spinal cord
-imposes structural form
-muscles work through attachment to vertebral column to change body shape and create locomotion
-allows force transfer
-segmented for control of rigidity
-allows lateral bending for manoeuvrability during locomotion
-flexion and extension can increase stride length and allows storage of elastic strain energy
Vertebrae in the body
-Vertebral column (spine) consists of individual vertebrae located in the midline of the body from the base of the skull to the tip of the tail
-unpaired bones separated by intervertebral discs
5 types of vertebrae in dog skeleton
-cervical
-thoracic
-lumbar
-sacrum
-coccygeal
How many vertebrae in cervical section of dog?
7
How many vertebrae in thoracic section of dog?
13
How many vertebrae in lumbar section of dog?
7
How many vertebrae in sacrum of dog?
3
How many vertebrae in coccygeal section of dog?
20-23
Dog/cat spinal formula
C7 T13 L7 S3 Cx6-23
General anatomy of vertebrae
-cylindrical body
-neural arch dorsally helps to form the vertebral foramen
-processes (spinous, transverse, articular)

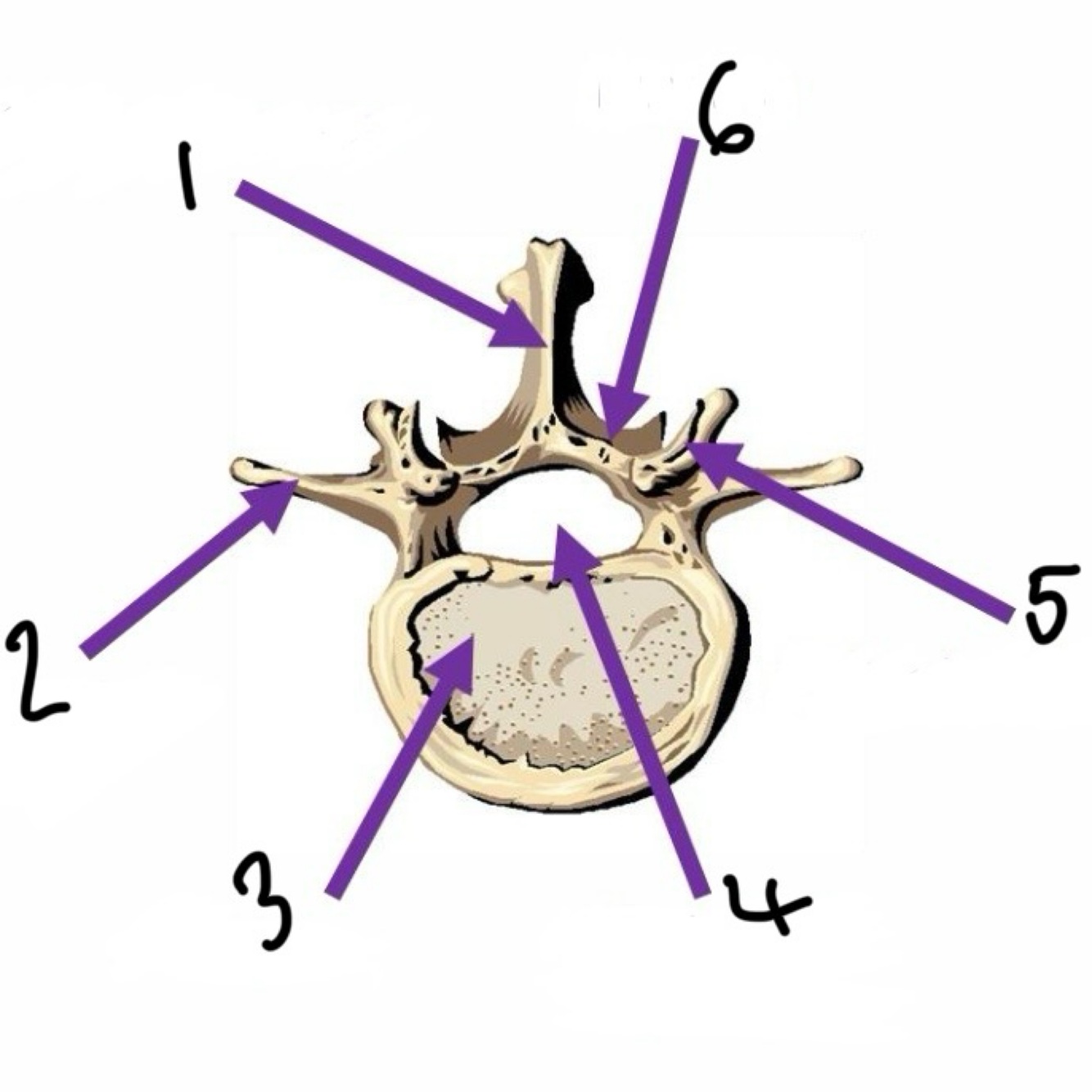

Name 1-6 of vertebrae
1-spinous process
2-transverse process
3-body
4-vertebral foramen
5-articular process
6-lamina
Intervertebral discs
Disc between bodies of vertebrae
Function of intervertebral discs
-prevents damage to spinal cord (fibrocartilaginous shock absorbers)
-spread compressive forces
-flexion of spine compresses ventral aspect of disc
What do intervertebral discs contain?
Annulus fibrosus - outer tough fibrous connective tissue - becomes under tension during compressive force
Nucleolus purposes - inner gelatinous core material

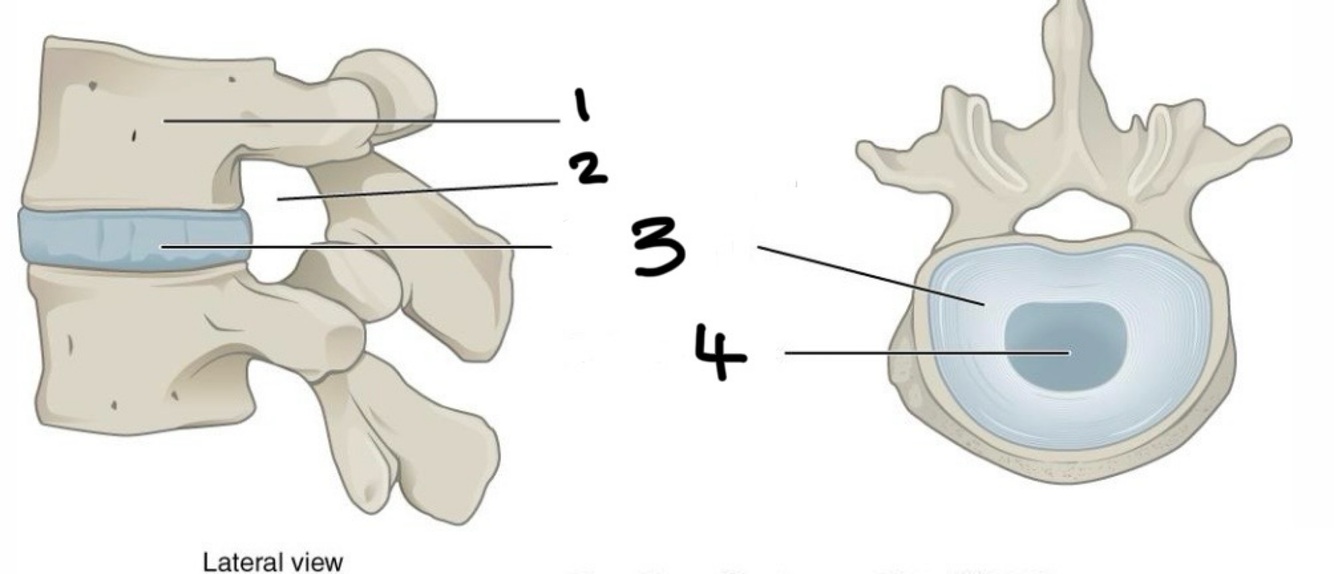

Name 1-4 of intervertebral discs
1-vertebral body
2-intervertebral foramen
3-anulus fribrosus
4-nucleus pulposus
Nuchal ligament
-fibroelastic connective tissue that supports the head and neck
Structure of atlas
-no body
-no spinous process
-two large transverse processes
Function of atlas
-articulates with skull
-occipital condyles = Atlanto-occipital joint
-allows nodding movement of head
Structure of axis
-elongated spinous process
-odontoid process
Function of elongated spinous process in axis
For the attachment of neck muscles and nuchal ligament
Function of odontoid process in axis
-projection of bone on the cranial aspect which articulates with the atlas
-acts as pivot to allow rotation of head

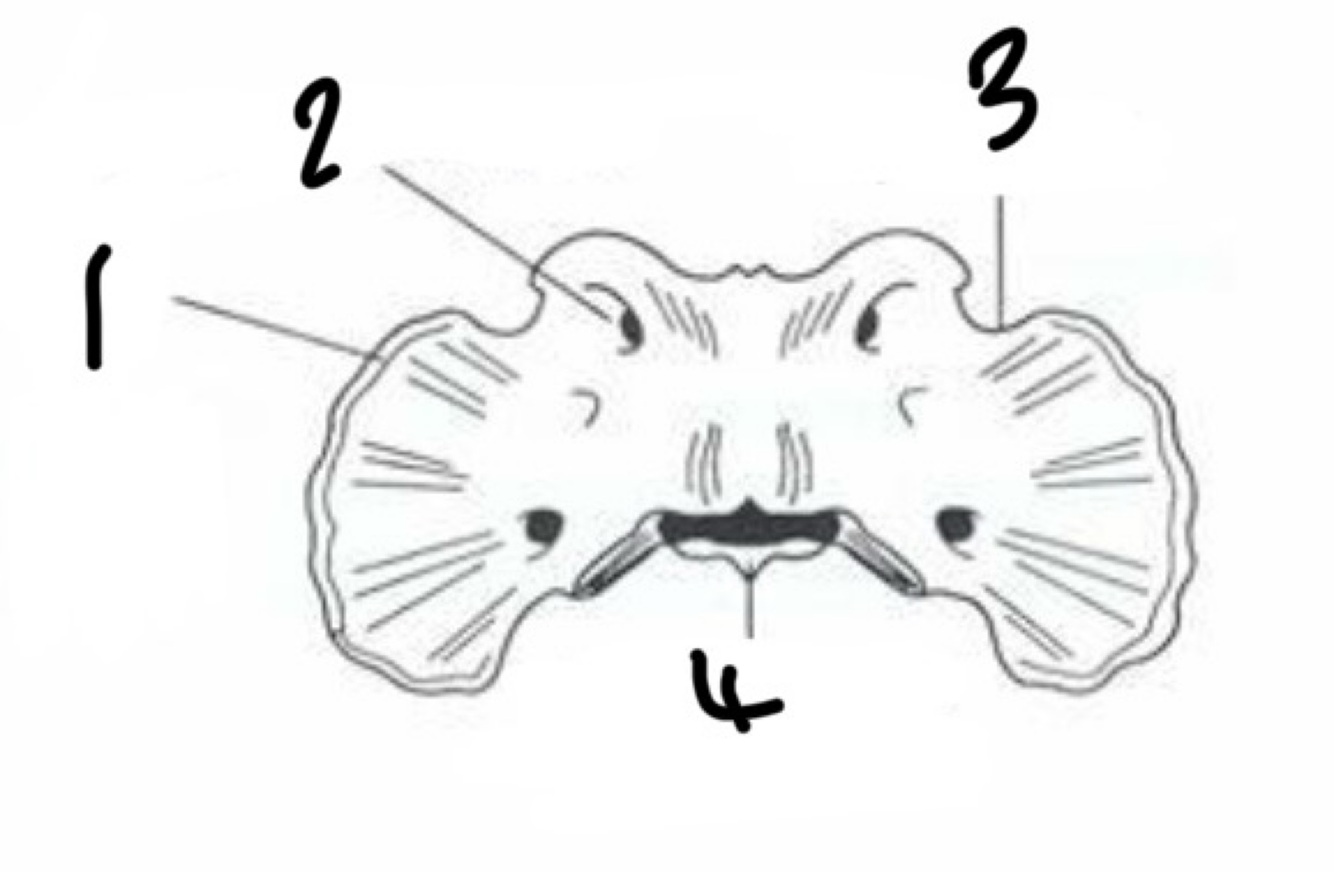

Name 1-4 of atlas
1-wing
2-intervertebral foramen
3-alar notch
4-ventral tubercle on ventral arch

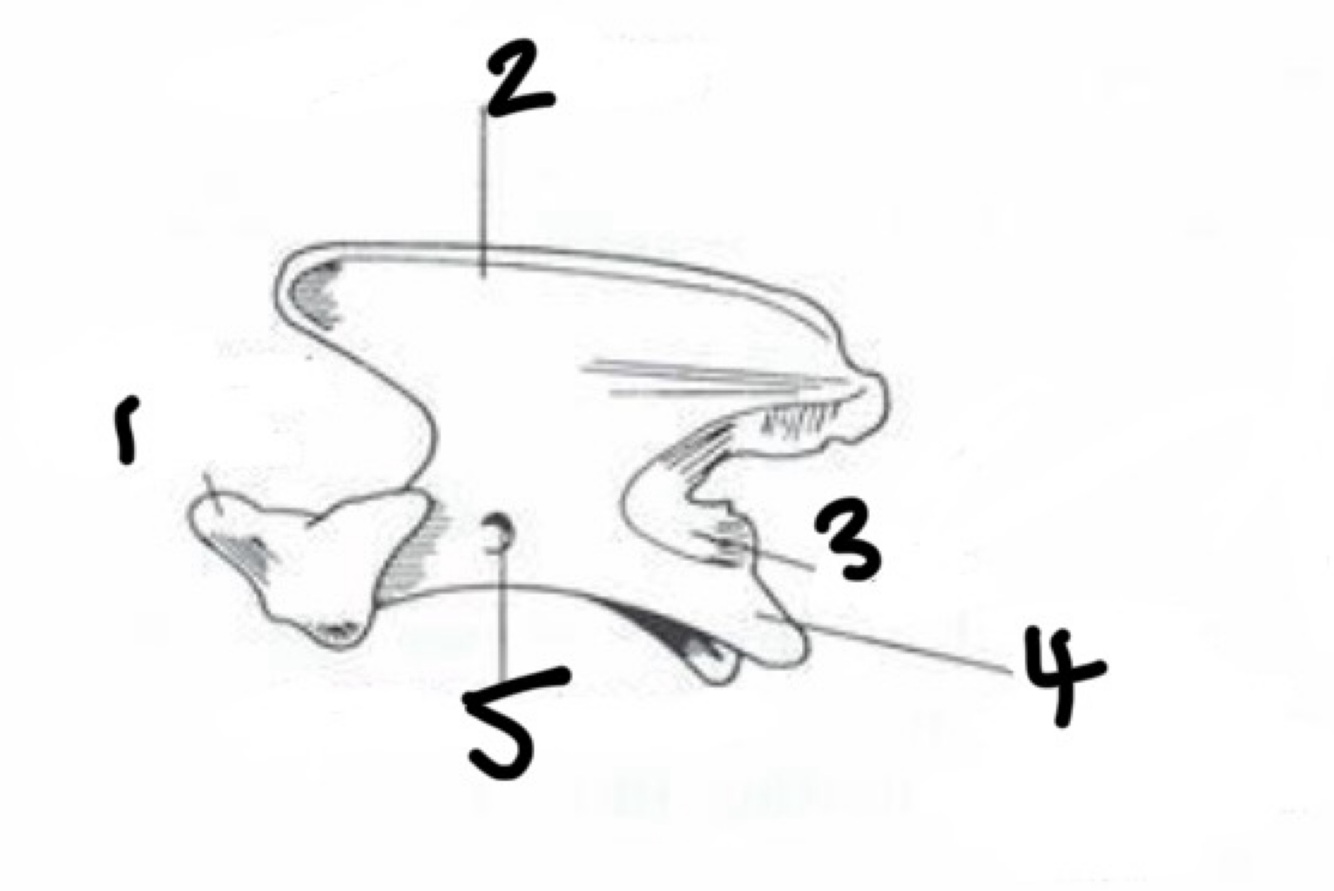

Name 1-5 of axis
1-odontoid process
2-spinous process
3-body
4-costo-transverse process on atlas
5-transverse foramen

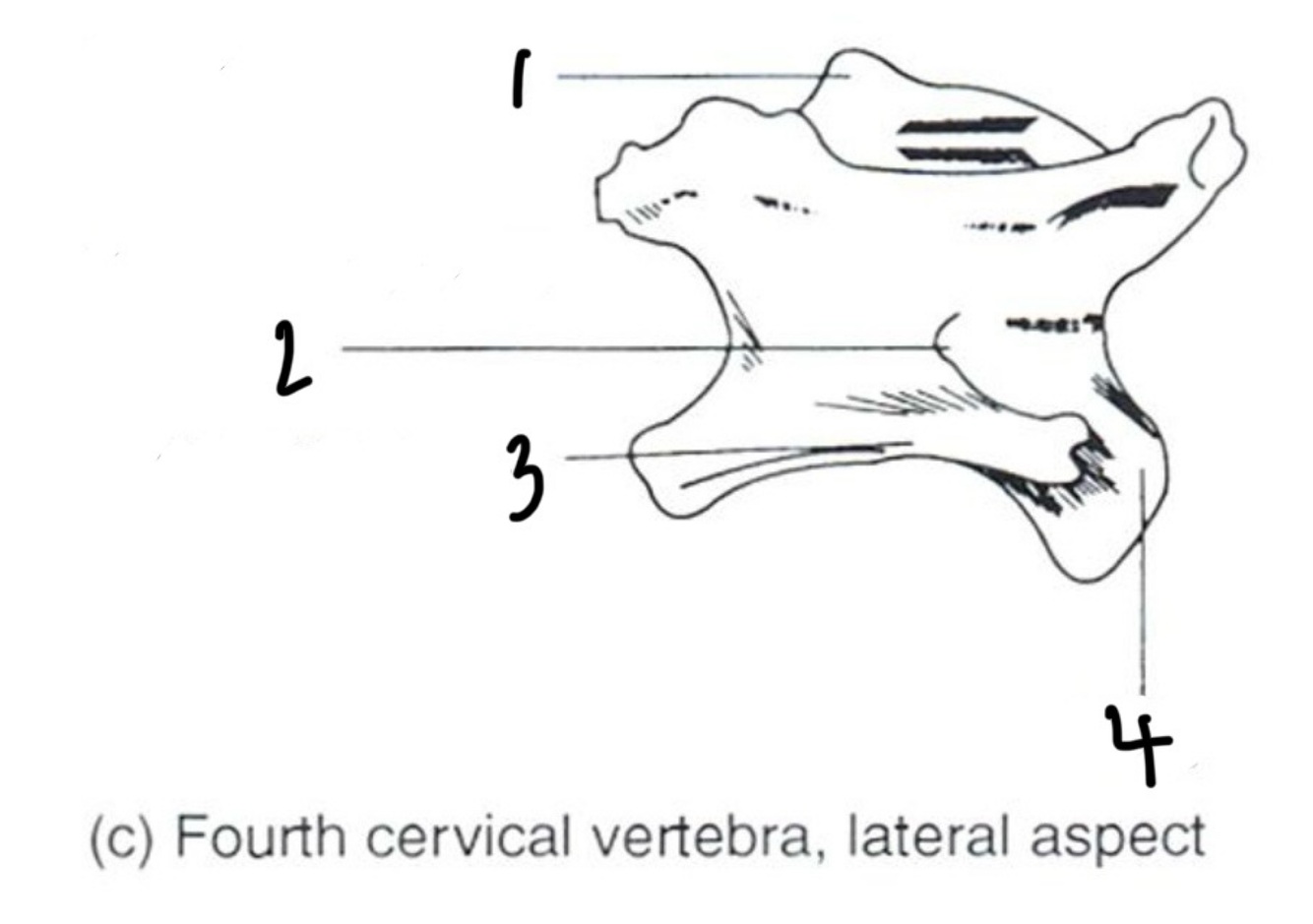

Name 1-4 of cervical vertebrae
1-spinous process
2-costo-transverse foramen
3-costo-transverse process
4-body
